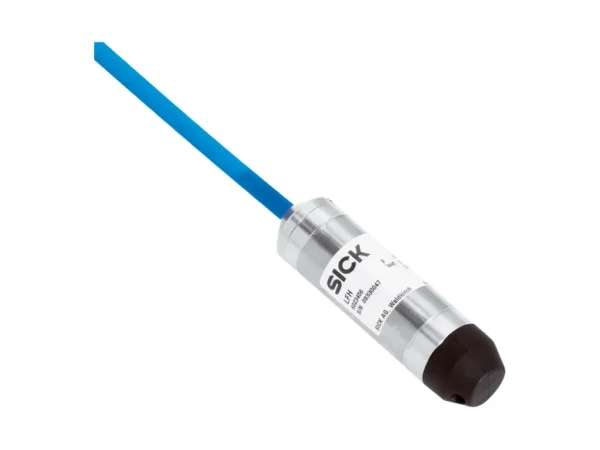

Home Basınç Sensörleri LFH-EB025G1VS60ZZ0 – 6071891 🔍 LFH-EB025G1VS60ZZ0 – 6071891 ✉ Teklif Al Teklif Al Stok kodu: 6071891 Kategoriler: Basınç Sensörleri Marka: SICK Açıklama Tecnichal data Features Medium Fluids Pressure type Gauge pressure Pressure unit bar Measuring range 0 bar … 25 bar Process temperature –10 °C … +50 °C Maximum ohmic load RA 4 mA … 20 mA, 2-wire, RA ≤ (L+ – 10 V) / 0.02 A – (0.14 x cable length in m) [Ohm] 0 V … 10 V, 3-wire optional with enhanced variant, RA > 100 kOhm 0 V … 5 V, 3-wire optional with enhanced variant, RA > 100 kOhm Output signal 0 V … 10 V, 3-wire Length of cable 60 m Cable material PUR Mechanics/electronics Wetted parts Housing: Stainless steel Pressure connection/diaphragm: CrNi steel Protection cap: PA Connection type PUR cable Supply voltage 14 V DC … 30 V DC Electrical safety Protection class: III Short-circuit protection: QA towards M Reverse polarity protection: L+ to M Surge protection: According to EN 61000-4-5 (1.5 J) optional for enhanced variant Dielectric strength 500 V DC, NEC Class 02 power supply (low voltage and low current max. 100 VA even in the event of a fault) CE-conformity EMC directive: 2014/30/EU, EN 61 326-2-3 Weight sensor 0.2 kg Cable weight 0.08 kg/m Enclosure rating IP68 Protection class III ✔ MTTF 452 years Performance Non-linearity ≤ ± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2 Accuracy ≤ ± 0.25 % of the span for Enhanced variant p ≥ 0.25 bar Non-repeatability ≤ ± 0.1 % of the span Long-term drift/one-year stability ≤ ± 0.2 % of span (at reference conditions) Temperature coefficient in rated temperature range Mean TC of zero: ≤ 0.2 % of span / 10 K (< 0.4 % for pressure ranges ≤ 0.25 bar) Mean TC of span ≤ 0.2 % of span / 10 K Rated temperature range 0 °C … +50 °C Ambient data Storage temperature –30 °C … +80 °C Classifications eCl@ss 5.0 27200614 eCl@ss 5.1.4 27200614 eCl@ss 6.0 27200614 eCl@ss 6.2 27200614 eCl@ss 7.0 27200614 eCl@ss 8.0 27200614 eCl@ss 8.1 27200614 eCl@ss 9.0 27200614 eCl@ss 10.0 27200614 eCl@ss 11.0 27200614 eCl@ss 12.0 27200614 ETIM 5.0 EC011478 ETIM 6.0 EC011478 ETIM 7.0 EC011478 ETIM 8.0 EC011478 UNSPSC 16.0901 41111950 İlgili ürünler PAC50-BGB – 1062959SICKBasınç Sensörleri ₺3.800,00 Ürüne Git PAC50-AGD – 1062948SICKBasınç Sensörleri ₺3.800,00 Ürüne Git PAC50-BCD – 1062967SICKBasınç Sensörleri ₺3.800,00 Ürüne Git PAC50-CGC – 1062973SICKBasınç Sensörleri ₺3.800,00 Ürüne Git
Tecnichal data Features Medium Fluids Pressure type Gauge pressure Pressure unit bar Measuring range 0 bar … 25 bar Process temperature –10 °C … +50 °C Maximum ohmic load RA 4 mA … 20 mA, 2-wire, RA ≤ (L+ – 10 V) / 0.02 A – (0.14 x cable length in m) [Ohm] 0 V … 10 V, 3-wire optional with enhanced variant, RA > 100 kOhm 0 V … 5 V, 3-wire optional with enhanced variant, RA > 100 kOhm Output signal 0 V … 10 V, 3-wire Length of cable 60 m Cable material PUR Mechanics/electronics Wetted parts Housing: Stainless steel Pressure connection/diaphragm: CrNi steel Protection cap: PA Connection type PUR cable Supply voltage 14 V DC … 30 V DC Electrical safety Protection class: III Short-circuit protection: QA towards M Reverse polarity protection: L+ to M Surge protection: According to EN 61000-4-5 (1.5 J) optional for enhanced variant Dielectric strength 500 V DC, NEC Class 02 power supply (low voltage and low current max. 100 VA even in the event of a fault) CE-conformity EMC directive: 2014/30/EU, EN 61 326-2-3 Weight sensor 0.2 kg Cable weight 0.08 kg/m Enclosure rating IP68 Protection class III ✔ MTTF 452 years Performance Non-linearity ≤ ± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2 Accuracy ≤ ± 0.25 % of the span for Enhanced variant p ≥ 0.25 bar Non-repeatability ≤ ± 0.1 % of the span Long-term drift/one-year stability ≤ ± 0.2 % of span (at reference conditions) Temperature coefficient in rated temperature range Mean TC of zero: ≤ 0.2 % of span / 10 K (< 0.4 % for pressure ranges ≤ 0.25 bar) Mean TC of span ≤ 0.2 % of span / 10 K Rated temperature range 0 °C … +50 °C Ambient data Storage temperature –30 °C … +80 °C Classifications eCl@ss 5.0 27200614 eCl@ss 5.1.4 27200614 eCl@ss 6.0 27200614 eCl@ss 6.2 27200614 eCl@ss 7.0 27200614 eCl@ss 8.0 27200614 eCl@ss 8.1 27200614 eCl@ss 9.0 27200614 eCl@ss 10.0 27200614 eCl@ss 11.0 27200614 eCl@ss 12.0 27200614 ETIM 5.0 EC011478 ETIM 6.0 EC011478 ETIM 7.0 EC011478 ETIM 8.0 EC011478 UNSPSC 16.0901 41111950
