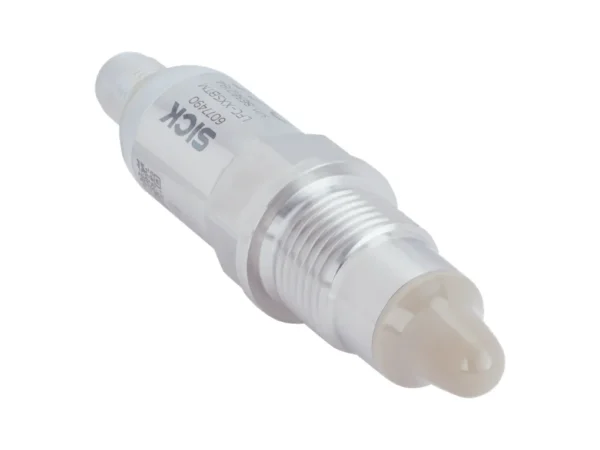

Home Seviye Sensörleri (Proses Tip) LFC-XXSBTM – 6077490 🔍 LFC-XXSBTM – 6077490 ✉ Teklif Al Teklif Al Stok kodu: 6077490 Kategoriler: Seviye Sensörleri (Proses Tip) Marka: SICK Açıklama Tecnichal data Features Medium Fluids Measurement Switch Process pressure –1 bar … 25 bar Process temperature –20 °C … +100 °C, +135 °C for max. 1 h RoHS certificate ✔ IO-Link ✔ Performance Accuracy of sensor element Approx. 1 mm Reproducibility Approx. 1 mm Resolution Approx. 1 mm Response time Approx. 500 ms Dielectricity constant ≥ 2 MTBF 7,3*10^6 h Electronics Supply voltage 12 V DC … 35 V DC Residual ripple ≤ 5 Vpp Power consumption ≤ 10 mA Protection class III Connection type M12 round connector x 1, 4-pin Output signal 2 x PNP/NPN IO-Link Power consumption ≤ 0.1 W Contamination rating 4 Inductive load ≤ 0.5 H Capacitive load 100 nF Enclosure rating IP66 / IP67 and IP69 (NEMA type 6P) EMC EN 61326-1 Overvoltage category I Load current ≤ 250 mA (Output permanently short-circuit proof) Voltage drop < 3 V Switching voltage < 34 V DC Reverse current < 10 µA Mechanics Wetted parts Sensor tip PEEK, polished Process connection G ½” PN 25, DIN 3852-A / 316L Housing material Stainless steel 1.4404, Plastic (Valox®) Sealing material NBR (male connector) Ambient data Ambient operating temperature –40 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273290 ECLASS 5.1.4 27273290 ECLASS 6.0 27273290 ECLASS 6.2 27273290 ECLASS 7.0 27273290 ECLASS 8.0 27273290 ECLASS 8.1 27273290 ECLASS 9.0 27273290 ECLASS 10.0 27273290 ECLASS 11.0 27273290 ECLASS 12.0 27200503 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111950 İlgili ürünler LFP1300-A5NMC – 1062256SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP1200-A5NMC – 1062255SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP1600-A5NMC – 1062259SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP1100-A5NMC – 1062254SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Fluids Measurement Switch Process pressure –1 bar … 25 bar Process temperature –20 °C … +100 °C, +135 °C for max. 1 h RoHS certificate ✔ IO-Link ✔ Performance Accuracy of sensor element Approx. 1 mm Reproducibility Approx. 1 mm Resolution Approx. 1 mm Response time Approx. 500 ms Dielectricity constant ≥ 2 MTBF 7,3*10^6 h Electronics Supply voltage 12 V DC … 35 V DC Residual ripple ≤ 5 Vpp Power consumption ≤ 10 mA Protection class III Connection type M12 round connector x 1, 4-pin Output signal 2 x PNP/NPN IO-Link Power consumption ≤ 0.1 W Contamination rating 4 Inductive load ≤ 0.5 H Capacitive load 100 nF Enclosure rating IP66 / IP67 and IP69 (NEMA type 6P) EMC EN 61326-1 Overvoltage category I Load current ≤ 250 mA (Output permanently short-circuit proof) Voltage drop < 3 V Switching voltage < 34 V DC Reverse current < 10 µA Mechanics Wetted parts Sensor tip PEEK, polished Process connection G ½” PN 25, DIN 3852-A / 316L Housing material Stainless steel 1.4404, Plastic (Valox®) Sealing material NBR (male connector) Ambient data Ambient operating temperature –40 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273290 ECLASS 5.1.4 27273290 ECLASS 6.0 27273290 ECLASS 6.2 27273290 ECLASS 7.0 27273290 ECLASS 8.0 27273290 ECLASS 8.1 27273290 ECLASS 9.0 27273290 ECLASS 10.0 27273290 ECLASS 11.0 27273290 ECLASS 12.0 27200503 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111950
