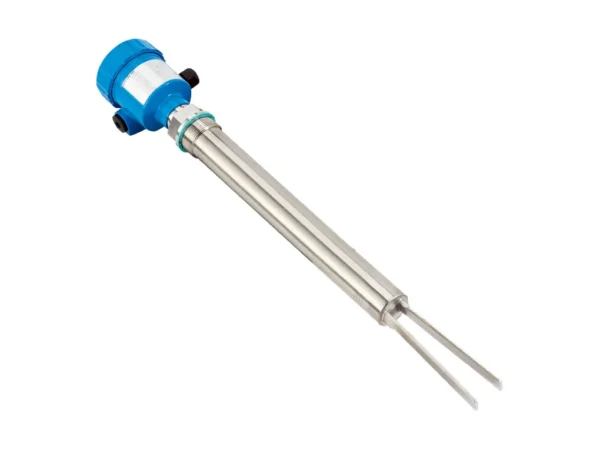

Home Seviye Sensörleri (Proses Tip) LBV330-GXAGDRAMX0450 BULK LEVEL SENSOR – 6050430 🔍 LBV330-GXAGDRAMX0450 BULK LEVEL SENSOR – 6050430 ✉ Teklif Al Teklif Al Stok kodu: 6050430 Kategoriler: Seviye Sensörleri (Proses Tip) Marka: SICK Açıklama Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 450 mm Process pressure –1 bar … 25 bar Process temperature –50 °C … +150 °C Fill material density ≥ 0.008 g/cm³ Particle size < 10 mm ATEX approval ATEX II 1D, 1/2D, 2D Ex ta ta/tb tb IIIC Tx Da, Da/Db, Db Type examination BVS 17 ATEX E 099 Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,61*10^6 h Electronics Power consumption 5 mA … 30 mA Initialization time < 2 s VDE protection class 1 ✔ Connection type M20 x 1.5 Output signal Double relay (DPDT) Supply voltage Double relay (DPDT): 20 V DC … 72 V DC / 20 V AC … 253 V AC Hysteresis 10 mm Output current > 10 µA; < 3A AC, 1A DC Inductive load 750 VA 54 W Capacitive load 750 VA 54 W Contact load Min. 50 mW / max. 750 VA, 54 W Enclosure rating IP66 / IP67 Mechanics Process connection G 1½ A PN 25 Housing material Aluminum Sensor material Stainless steel 1.4404 Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938 İlgili ürünler LFP0500-A5NMC – 1062248SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0400-B5NMC – 1062266SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP1000-A5NMC – 1062253SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0600-B5NMC – 1062268SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 450 mm Process pressure –1 bar … 25 bar Process temperature –50 °C … +150 °C Fill material density ≥ 0.008 g/cm³ Particle size < 10 mm ATEX approval ATEX II 1D, 1/2D, 2D Ex ta ta/tb tb IIIC Tx Da, Da/Db, Db Type examination BVS 17 ATEX E 099 Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,61*10^6 h Electronics Power consumption 5 mA … 30 mA Initialization time < 2 s VDE protection class 1 ✔ Connection type M20 x 1.5 Output signal Double relay (DPDT) Supply voltage Double relay (DPDT): 20 V DC … 72 V DC / 20 V AC … 253 V AC Hysteresis 10 mm Output current > 10 µA; < 3A AC, 1A DC Inductive load 750 VA 54 W Capacitive load 750 VA 54 W Contact load Min. 50 mW / max. 750 VA, 54 W Enclosure rating IP66 / IP67 Mechanics Process connection G 1½ A PN 25 Housing material Aluminum Sensor material Stainless steel 1.4404 Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938
