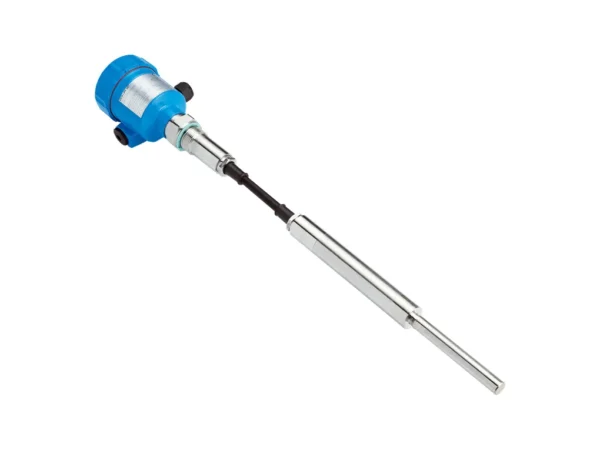

Home Seviye Sensörleri (Proses Tip) LBV321-XXTGDRAMX00500 BULK LEVEL SENSOR – 6075194 🔍 LBV321-XXTGDRAMX00500 BULK LEVEL SENSOR – 6075194 ✉ Teklif Al Teklif Al Stok kodu: 6075194 Kategoriler: Seviye Sensörleri (Proses Tip) Marka: SICK Açıklama Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 500 mm Process pressure –1 bar … 6 bar Process temperature –20 °C … +80 °C, detection of solids in water Fill material density ≥ 0.02 g/cm³ Tensile strength ≤ 3,000 N Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,17*10^6 h Electronics Power consumption 5 mA … 30 mA Initialization time < 2 s VDE protection class 1 ✔ Connection type M20 x 1.5 Output signal Double relay (DPDT) Supply voltage Double relay (DPDT): 20 V DC … 72 V DC / 20 V AC … 253 V AC Hysteresis 10 mm Output current > 10 µA; < 3A AC, 1A DC Enclosure rating IP66 / IP67 Mechanics Process connection G 1 ½, DIN 3852-A, PN16 / 316L Housing material Aluminum Sensor material Stainless steel 316L, 318S, PUR, FEB Ambient data Ambient operating temperature –40 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938 İlgili ürünler LFP1100-A5NMC – 1062254SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0600-A5NMC – 1062249SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0400-B5NMC – 1062266SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP1300-A5NMC – 1062256SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 500 mm Process pressure –1 bar … 6 bar Process temperature –20 °C … +80 °C, detection of solids in water Fill material density ≥ 0.02 g/cm³ Tensile strength ≤ 3,000 N Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,17*10^6 h Electronics Power consumption 5 mA … 30 mA Initialization time < 2 s VDE protection class 1 ✔ Connection type M20 x 1.5 Output signal Double relay (DPDT) Supply voltage Double relay (DPDT): 20 V DC … 72 V DC / 20 V AC … 253 V AC Hysteresis 10 mm Output current > 10 µA; < 3A AC, 1A DC Enclosure rating IP66 / IP67 Mechanics Process connection G 1 ½, DIN 3852-A, PN16 / 316L Housing material Aluminum Sensor material Stainless steel 316L, 318S, PUR, FEB Ambient data Ambient operating temperature –40 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938
