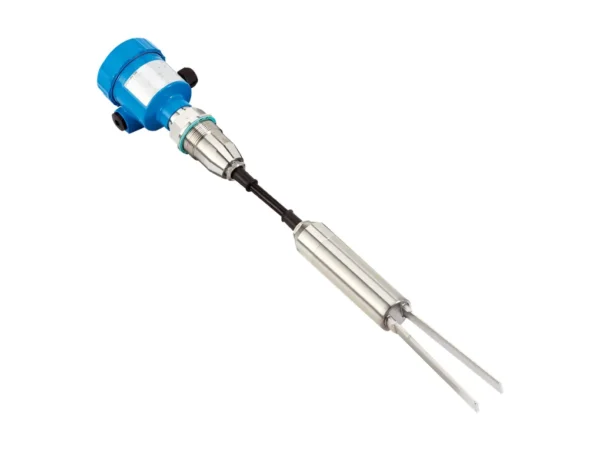

Home Seviye Sensörleri (Proses Tip) LBV320-XXTNDRANX00600 BULK LEVEL SENSOR – 6038369 🔍 LBV320-XXTNDRANX00600 BULK LEVEL SENSOR – 6038369 ✉ Teklif Al Teklif Al Stok kodu: 6038369 Kategoriler: Seviye Sensörleri (Proses Tip) Marka: SICK Açıklama Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 600 mm Process pressure –1 bar … 6 bar Process temperature –20 °C … +80 °C Fill material density ≥ 0.008 g/cm³ Particle size < 10 mm Tensile strength ≤ 3,000 N Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,61*10^6 h Electronics Power consumption 5 mA … 30 mA Initialization time < 2 s VDE protection class 1 ✔ Connection type ½” NPT Output signal Double relay (DPDT) Supply voltage Double relay (DPDT): 20 V DC … 72 V DC / 20 V AC … 253 V AC Hysteresis 10 mm Output current > 10 µA; < 3A AC, 1A DC Inductive load 750 VA 54 W Capacitive load 750 VA 54 W Contact load Min. 50 mW / max. 750 VA, 54 W Enclosure rating IP66 / IP67 Mechanics Process connection 1 1/2″ NPT PN 25 / stainless steel 316L Housing material Aluminum Sensor material Stainless steel 316L, 318LN, PUR Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938 İlgili ürünler LFP0700-A5NMC – 1062250SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0300-A5NMC – 1062246SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP2000-A5NMC – 1062263SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP1400-A5NMC – 1062257SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 600 mm Process pressure –1 bar … 6 bar Process temperature –20 °C … +80 °C Fill material density ≥ 0.008 g/cm³ Particle size < 10 mm Tensile strength ≤ 3,000 N Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,61*10^6 h Electronics Power consumption 5 mA … 30 mA Initialization time < 2 s VDE protection class 1 ✔ Connection type ½” NPT Output signal Double relay (DPDT) Supply voltage Double relay (DPDT): 20 V DC … 72 V DC / 20 V AC … 253 V AC Hysteresis 10 mm Output current > 10 µA; < 3A AC, 1A DC Inductive load 750 VA 54 W Capacitive load 750 VA 54 W Contact load Min. 50 mW / max. 750 VA, 54 W Enclosure rating IP66 / IP67 Mechanics Process connection 1 1/2″ NPT PN 25 / stainless steel 316L Housing material Aluminum Sensor material Stainless steel 316L, 318LN, PUR Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938
