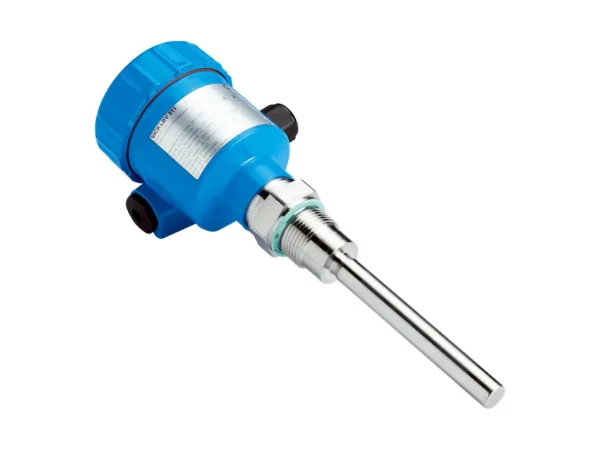

Home Seviye Sensörleri (Proses Tip) LBV311-XXACVTVMX – 6074936 🔍 LBV311-XXACVTVMX – 6074936 ✉ Teklif Al Teklif Al Stok kodu: 6074936 Kategoriler: Seviye Sensörleri (Proses Tip) Marka: SICK Açıklama Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 160 mm Process pressure –1 bar … 16 bar Process temperature –50 °C … +150 °C Fill material density ≥ 0.02 g/cm³ Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,17*10^6 h Electronics Residual ripple ≤ 5 Vpp Power consumption ≤ 10 mA Initialization time < 2 s VDE protection class 2 ✔ Connection type M20 x 1.5 Output signal 1 x PNP/NPN Supply voltage Volt-free transistor output PNP/ NPN: 10 V DC … 55 V DC Hysteresis 10 mm Output current < 300 mA Inductive load 1 H Capacitive load 100 nF Enclosure rating IP66 / IP67 Mechanics Process connection Tri-Clamp 2” (316L, Ra < 0.8 μm) Housing material Stainless steel (investment casting) 316L Sensor material Stainless steel 316L, 318S Ambient data Ambient operating temperature –40 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938 İlgili ürünler LFP1800-A5NMC – 1062261SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0500-B5NMC – 1062267SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0600-B5NMC – 1062268SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0400-A5NMC – 1062247SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 160 mm Process pressure –1 bar … 16 bar Process temperature –50 °C … +150 °C Fill material density ≥ 0.02 g/cm³ Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,17*10^6 h Electronics Residual ripple ≤ 5 Vpp Power consumption ≤ 10 mA Initialization time < 2 s VDE protection class 2 ✔ Connection type M20 x 1.5 Output signal 1 x PNP/NPN Supply voltage Volt-free transistor output PNP/ NPN: 10 V DC … 55 V DC Hysteresis 10 mm Output current < 300 mA Inductive load 1 H Capacitive load 100 nF Enclosure rating IP66 / IP67 Mechanics Process connection Tri-Clamp 2” (316L, Ra < 0.8 μm) Housing material Stainless steel (investment casting) 316L Sensor material Stainless steel 316L, 318S Ambient data Ambient operating temperature –40 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938
