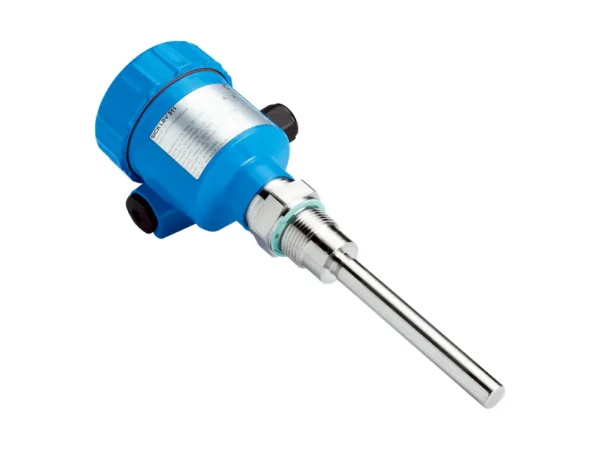

Home Seviye Sensörleri (Proses Tip) LBV311-GXAGPRAMX – 6070502 🔍 LBV311-GXAGPRAMX – 6070502 ✉ Teklif Al Teklif Al Stok kodu: 6070502 Kategoriler: Seviye Sensörleri (Proses Tip) Marka: SICK Açıklama Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 160 mm Process pressure –1 bar … 16 bar Process temperature –50 °C … +150 °C Fill material density ≥ 0.02 g/cm³ ATEX approval ATEX II 1D, 1/2D, 2D Ex ta ta/tb tb IIIC Tx Da, Da/Db, Db Type examination BVS 17 ATEX E 098 X Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,17*10^6 h Electronics Power consumption 5 mA … 30 mA Initialization time < 2 s VDE protection class 1 ✔ Connection type M20 x 1.5 Output signal Double relay (DPDT) Supply voltage Double relay (DPDT): 20 V DC … 72 V DC / 20 V AC … 253 V AC Hysteresis 10 mm Output current > 10 µA; < 3A AC, 1A DC Enclosure rating IP66 / IP67 Mechanics Process connection G 1 ½, DIN 3852-A, PN 16 / 316L, Ra < 0.8 µm Housing material Aluminum Sensor material Stainless steel 316L, 318S Ambient data Ambient operating temperature –40 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938 İlgili ürünler LFP1700-A5NMC – 1062260SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP2000-A5NMC – 1062263SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0200-A5NMC – 1062245SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0600-A5NMC – 1062249SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 160 mm Process pressure –1 bar … 16 bar Process temperature –50 °C … +150 °C Fill material density ≥ 0.02 g/cm³ ATEX approval ATEX II 1D, 1/2D, 2D Ex ta ta/tb tb IIIC Tx Da, Da/Db, Db Type examination BVS 17 ATEX E 098 X Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,17*10^6 h Electronics Power consumption 5 mA … 30 mA Initialization time < 2 s VDE protection class 1 ✔ Connection type M20 x 1.5 Output signal Double relay (DPDT) Supply voltage Double relay (DPDT): 20 V DC … 72 V DC / 20 V AC … 253 V AC Hysteresis 10 mm Output current > 10 µA; < 3A AC, 1A DC Enclosure rating IP66 / IP67 Mechanics Process connection G 1 ½, DIN 3852-A, PN 16 / 316L, Ra < 0.8 µm Housing material Aluminum Sensor material Stainless steel 316L, 318S Ambient data Ambient operating temperature –40 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938
