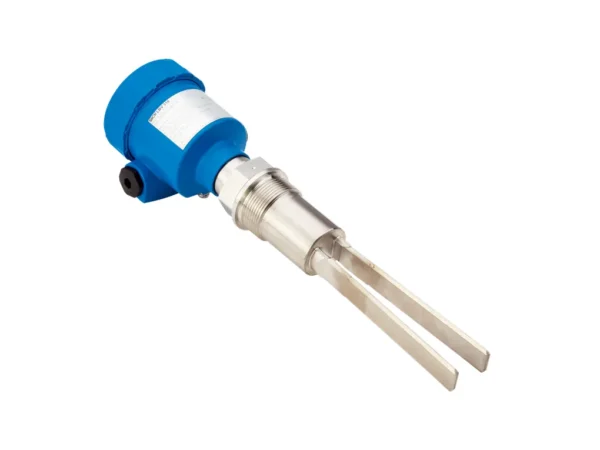

Home Seviye Sensörleri (Proses Tip) LBV310-XXBNDNAMX – 6038095 🔍 LBV310-XXBNDNAMX – 6038095 ✉ Teklif Al Teklif Al Stok kodu: 6038095 Kategoriler: Seviye Sensörleri (Proses Tip) Marka: SICK Açıklama Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 220 mm Process pressure –1 bar … 25 bar Process temperature –50 °C … +250 °C, Temperature range with temperature adapter Fill material density ≥ 0.008 g/cm³ Particle size < 10 mm Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,61*10^6 h Electronics Power consumption 1 mA / 2,5 mA Initialization time < 2 s VDE protection class 2 ✔ Connection type M20 x 1.5 Output signal NAMUR signal Supply voltage NAMUR signal: 4.5 V DC … 12 V DC Hysteresis 10 mm Output current 1 mA / 2,5 mA Enclosure rating IP66 / IP67 Mechanics Process connection 1 1/2″ NPT PN 25 / stainless steel 316L Housing material Aluminum Sensor material Stainless steel 1.4404 Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938 İlgili ürünler LFP0600-A5NMC – 1062249SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP2000-A5NMC – 1062263SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0300-B5NMC – 1062265SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP1300-A5NMC – 1062256SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 220 mm Process pressure –1 bar … 25 bar Process temperature –50 °C … +250 °C, Temperature range with temperature adapter Fill material density ≥ 0.008 g/cm³ Particle size < 10 mm Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,61*10^6 h Electronics Power consumption 1 mA / 2,5 mA Initialization time < 2 s VDE protection class 2 ✔ Connection type M20 x 1.5 Output signal NAMUR signal Supply voltage NAMUR signal: 4.5 V DC … 12 V DC Hysteresis 10 mm Output current 1 mA / 2,5 mA Enclosure rating IP66 / IP67 Mechanics Process connection 1 1/2″ NPT PN 25 / stainless steel 316L Housing material Aluminum Sensor material Stainless steel 1.4404 Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938
