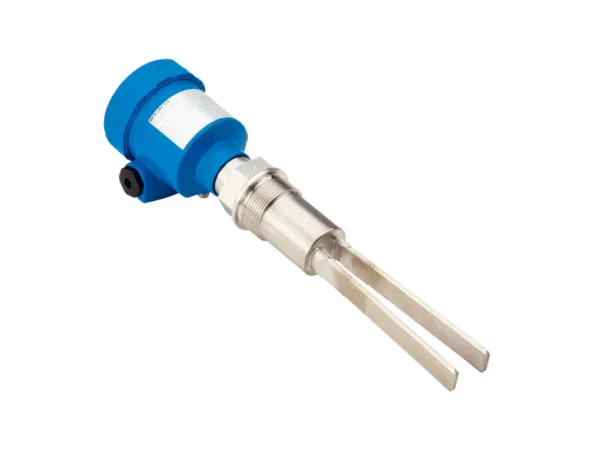

Home Seviye Sensörleri (Proses Tip) LBV310-XXBGDC8MX – 6038054 🔍 LBV310-XXBGDC8MX – 6038054 ✉ Teklif Al Teklif Al Stok kodu: 6038054 Kategoriler: Seviye Sensörleri (Proses Tip) Marka: SICK Açıklama Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 220 mm Process pressure –1 bar … 25 bar Process temperature –50 °C … +250 °C, Temperature range with temperature adapter Fill material density ≥ 0.008 g/cm³ Particle size < 10 mm Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,61*10^6 h Electronics Power consumption < 4.2 mA Initialization time < 3 s VDE protection class 1 ✔ Connection type M20 x 1.5 Output signal Non-contact switch Supply voltage Non-contact switch: 20 V AC/DC … 253 V DC Hysteresis 10 mm Output current < 400 mA Inductive load ≤ 1 H Capacitive load 100 nF Enclosure rating IP66 / IP67 Mechanics Process connection G 1½ A PN 25 Housing material Stainless steel (electropolished) Sensor material Stainless steel 1.4404 Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938 İlgili ürünler LFP1900-A5NMC – 1062262SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP1400-A5NMC – 1062257SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0900-A5NMC – 1062252SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0500-A5NMC – 1062248SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Bulk solids Measurement Switch Probe length 220 mm Process pressure –1 bar … 25 bar Process temperature –50 °C … +250 °C, Temperature range with temperature adapter Fill material density ≥ 0.008 g/cm³ Particle size < 10 mm Performance Accuracy of sensor element ± 10 mm Reproducibility ≤ 5 mm Response time 500 ms when covered / 1,000 ms when uncovered MTBF 4,61*10^6 h Electronics Power consumption < 4.2 mA Initialization time < 3 s VDE protection class 1 ✔ Connection type M20 x 1.5 Output signal Non-contact switch Supply voltage Non-contact switch: 20 V AC/DC … 253 V DC Hysteresis 10 mm Output current < 400 mA Inductive load ≤ 1 H Capacitive load 100 nF Enclosure rating IP66 / IP67 Mechanics Process connection G 1½ A PN 25 Housing material Stainless steel (electropolished) Sensor material Stainless steel 1.4404 Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938
