Name: SICK 6081173 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 6081173
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Medium	Bulk solids
Measurement	Continuous
Probe type	Plastic horn antenna made from PP
Frequency band	W-band (within 75 … 85 GHz)
Measuring range	Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft)
Angle of dispersion	3.5°
Process pressure	–1 bar … 2 bar (-100 kPa … 200 kPa / –14.5 psig … 29.1 psig)
Process temperature	–40 °C … +80 °C
RoHS certificate	✔
HART	✔
Indication	Without

Performance

Accuracy of sensor element	≤ 5 mm
Non-repeatability	≤ 1 mm
Digital measurement resolution	< 1 mm
Analog measurement resolution	0.3 µA
Digital output temperature drift	≤ 3 mm / 10 K, max. 10 mm
Current output temperature drift	≤ 0.03% / 10 K relating to the 16 mA span or ≤ 0.3%
Deviation on current output due to digital-analog conversion	< 15 µA
Measurement cycle time	Approx. 700 ms
Step response time	≤ 3 s
MTBF	3,37*10^6 h

Electronics

Mechanics

Process connection	Mounting clamp, length: 300 mm / 316L
Housing material	Aluminum die cast AlSi10Mg, powder-coated (base: polyester)
Housing design	Single-chamber housing
Sealing material	PP
Antenna material	PP

Ambient data

Ambient operating temperature	–40 °C … +80 °C
Ambient temperature, storage	–40 °C … +80 °C

Classifications

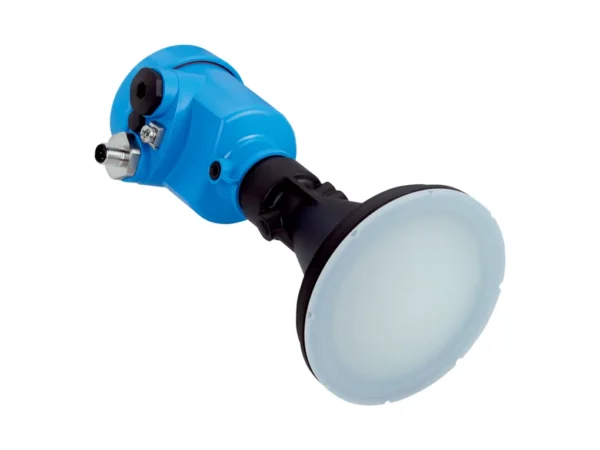

LBR-XXBXDCMHAXX – 6081173
