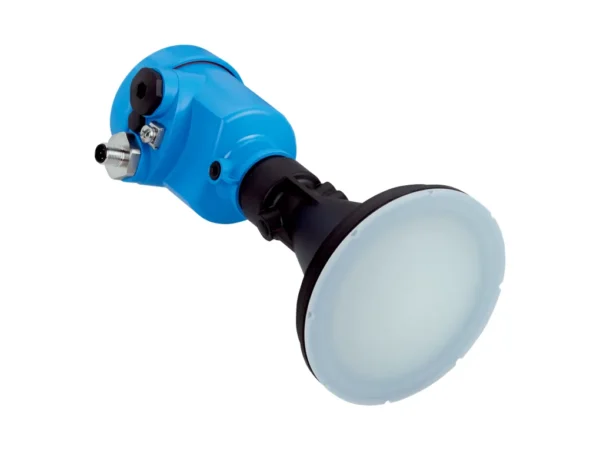

Home Işık Perdeleri LBR-XXBXCCBHKXX – 6072113 🔍 LBR-XXBXCCBHKXX – 6072113 ✉ Teklif Al Teklif Al Stok kodu: 6072113 Kategoriler: Işık Perdeleri Marka: SICK Açıklama Tecnichal data Features Medium Bulk solids Measurement Continuous Probe type Plastic horn antenna made from PP Frequency band W-band (within 75 … 85 GHz) Measuring range Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft) Angle of dispersion 3.5° Process pressure –1 bar … 2 bar(-100 kPa … 200 kPa / –14.5 psig … 29.1 psig) Process temperature –40 °C … +80 °C RoHS certificate ✔ HART ✔ Indication Without Performance Accuracy of sensor element ≤ 5 mm Non-repeatability ≤ 1 mm Digital measurement resolution < 1 mm Analog measurement resolution 0.3 µA Digital output temperature drift ≤ 3 mm / 10 K, max. 10 mm Current output temperature drift ≤ 0.03% / 10 K relating to the 16 mA span or ≤ 0.3% Deviation on current output due to digital-analog conversion < 15 µA Measurement cycle time Approx. 700 ms Step response time ≤ 3 s MTBF 3,37*10^6 h Electronics Supply voltage 9 V DC … 30 V DC Protection class I (IEC 61010-1) Connection type M20 x 1.5 / plug connector M12 x 1 pin assignment B Output signal 4 mA … 20 mA / HART Contamination rating 4 Enclosure rating IP67 / IP67 EMC EN 61326-1 Start-up current < 3.6 mA Overvoltage category III (IEC 61010-1) Short-circuit protection ✔ Isolation ✔ Mechanics Process connection Mounting clamp, length: 170 mm / 316L Housing material Plastic PBT (polyester) Housing design Single-chamber housing Sealing material PP Antenna material PP Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27200505 ECLASS 5.1.4 27200505 ECLASS 6.0 27200505 ECLASS 6.2 27200505 ECLASS 7.0 27200505 ECLASS 8.0 27200505 ECLASS 8.1 27200505 ECLASS 9.0 27200505 ECLASS 10.0 27270807 ECLASS 11.0 27270807 ECLASS 12.0 27274501 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950 İlgili ürünler Mounting brackets, Safety Light Curtain, two clamps for one stick, side and backside mounting – 450L-AM-SMALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 1800 mm (70.92 in.) Protected Height – 450L-E4HL1800YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Transceiver, LineE 1350 – 30mm, Product line E, Type4/Cat.4, 30mm Hand resolution, Protective height: 1350 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4HL1350YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Transceiver, LineE 600 – 30mm, Product line E, Type4/Cat.4, 30mm Hand resolution, Protective height: 600 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4HL0600YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git
Tecnichal data Features Medium Bulk solids Measurement Continuous Probe type Plastic horn antenna made from PP Frequency band W-band (within 75 … 85 GHz) Measuring range Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft) Angle of dispersion 3.5° Process pressure –1 bar … 2 bar(-100 kPa … 200 kPa / –14.5 psig … 29.1 psig) Process temperature –40 °C … +80 °C RoHS certificate ✔ HART ✔ Indication Without Performance Accuracy of sensor element ≤ 5 mm Non-repeatability ≤ 1 mm Digital measurement resolution < 1 mm Analog measurement resolution 0.3 µA Digital output temperature drift ≤ 3 mm / 10 K, max. 10 mm Current output temperature drift ≤ 0.03% / 10 K relating to the 16 mA span or ≤ 0.3% Deviation on current output due to digital-analog conversion < 15 µA Measurement cycle time Approx. 700 ms Step response time ≤ 3 s MTBF 3,37*10^6 h Electronics Supply voltage 9 V DC … 30 V DC Protection class I (IEC 61010-1) Connection type M20 x 1.5 / plug connector M12 x 1 pin assignment B Output signal 4 mA … 20 mA / HART Contamination rating 4 Enclosure rating IP67 / IP67 EMC EN 61326-1 Start-up current < 3.6 mA Overvoltage category III (IEC 61010-1) Short-circuit protection ✔ Isolation ✔ Mechanics Process connection Mounting clamp, length: 170 mm / 316L Housing material Plastic PBT (polyester) Housing design Single-chamber housing Sealing material PP Antenna material PP Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27200505 ECLASS 5.1.4 27200505 ECLASS 6.0 27200505 ECLASS 6.2 27200505 ECLASS 7.0 27200505 ECLASS 8.0 27200505 ECLASS 8.1 27200505 ECLASS 9.0 27200505 ECLASS 10.0 27270807 ECLASS 11.0 27270807 ECLASS 12.0 27274501 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950
