Name: SICK 6078016 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 6078016
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Medium	Bulk solids
Measurement	Continuous
Probe type	Thread with integrated horn antenna made from PEEK
Frequency band	W-band (within 75 … 85 GHz)
Measuring range	Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft)
Angle of dispersion	7°
Process pressure	–1 bar … 20 bar (-100 kPa … 2,000 kPa / –14.5 psig … 290.1 psig)
Process temperature	–40 °C … +130 °C
ATEX approval	IEC Ex ia IIC T6…T1, Ga, Ga/Gb, Gb
Type examination	IECEx KIWA 20.0014X
RoHS certificate	✔
HART	✔
Indication	Installed
Control element	Pushbutton operation

Performance

Accuracy of sensor element	≤ 5 mm
Non-repeatability	≤ 1 mm
Digital measurement resolution	< 1 mm
Analog measurement resolution	0.3 µA
Digital output temperature drift	≤ 3 mm / 10 K, max. 10 mm
Current output temperature drift	≤ 0.03% / 10 K relating to the 16 mA span or ≤ 0.3%
Deviation on current output due to digital-analog conversion	< 15 µA
Measurement cycle time	Approx. 700 ms
Step response time	≤ 3 s
MTBF	3,37*10^6 h
Display	✔

Electronics

Mechanics

Ambient data

Ambient operating temperature	–40 °C … +80 °C
Ambient temperature, storage	–40 °C … +80 °C

Classifications

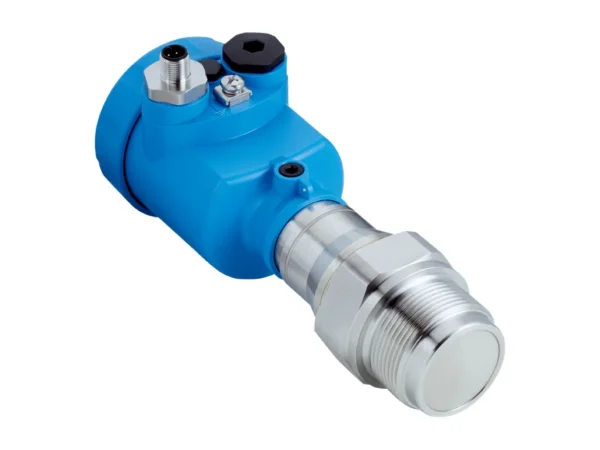

LBR-ICTTCAMHKAX – 6078016
