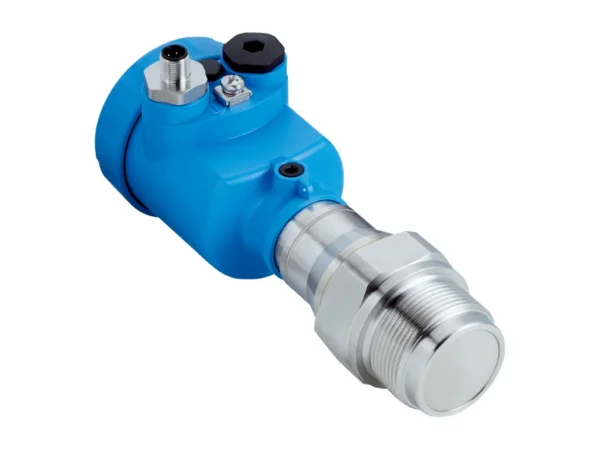

Home Işık Perdeleri LBR-ACTTCAMHKAX – 6072181 🔍 LBR-ACTTCAMHKAX – 6072181 ✉ Teklif Al Teklif Al Stok kodu: 6072181 Kategoriler: Işık Perdeleri Marka: SICK Açıklama Tecnichal data Features Medium Bulk solids Measurement Continuous Probe type Thread with integrated horn antenna made from PEEK Frequency band W-band (within 75 … 85 GHz) Measuring range Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft) Angle of dispersion 7° Process pressure –1 bar … 20 bar(-100 kPa … 2,000 kPa / –14.5 psig … 290.1 psig) Process temperature –40 °C … +130 °C ATEX approval ATEX II 1G, 1/2G, 2G Ex ia IIC T6 Type examination KIWA 20ATEX0039 X RoHS certificate ✔ HART ✔ Indication Installed Control element Pushbutton operation Performance Accuracy of sensor element ≤ 5 mm Non-repeatability ≤ 1 mm Digital measurement resolution < 1 mm Analog measurement resolution 0.3 µA Digital output temperature drift ≤ 3 mm / 10 K, max. 10 mm Current output temperature drift ≤ 0.03% / 10 K relating to the 16 mA span or ≤ 0.3% Deviation on current output due to digital-analog conversion < 15 µA Measurement cycle time Approx. 700 ms Step response time ≤ 3 s MTBF 3,37*10^6 h Display ✔ Electronics Supply voltage 9 V DC … 30 V DC Protection class I (IEC 61010-1) Connection type M20 x 1.5 / cable gland PA black (ø 5 mm – 9 mm) Output signal 4 mA … 20 mA / HART Contamination rating 4 Enclosure rating IP67 / IP67 EMC EN 61326-1 Start-up current < 3.6 mA Overvoltage category III (IEC 61010-1) Short-circuit protection ✔ Isolation ✔ Mechanics Process connection Thread G 1 ½ PN20, DIN3852-A / 316L Housing material Plastic PBT (polyester) Housing design Single-chamber housing Sealing material FKM (SHS FPM 70C3 GLT) Antenna material PEEK Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27200505 ECLASS 5.1.4 27200505 ECLASS 6.0 27200505 ECLASS 6.2 27200505 ECLASS 7.0 27200505 ECLASS 8.0 27200505 ECLASS 8.1 27200505 ECLASS 9.0 27200505 ECLASS 10.0 27270807 ECLASS 11.0 27270807 ECLASS 12.0 27274501 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950 İlgili ürünler Transceiver, LineE 600 – 30mm, Product line E, Type4/Cat.4, 30mm Hand resolution, Protective height: 600 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4HL0600YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Corner Mirror, Glass, Range 4m, Height 600mm – 440L-AM0750600ALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Transceiver, LineE 1350 – 30mm, Product line E, Type4/Cat.4, 30mm Hand resolution, Protective height: 1350 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4HL1350YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Transceiver, LineE 1050 – 30mm, Product line E, Type4/Cat.4, 30mm Hand resolution, Protective height: 1050 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4HL1050YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git
Tecnichal data Features Medium Bulk solids Measurement Continuous Probe type Thread with integrated horn antenna made from PEEK Frequency band W-band (within 75 … 85 GHz) Measuring range Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft) Angle of dispersion 7° Process pressure –1 bar … 20 bar(-100 kPa … 2,000 kPa / –14.5 psig … 290.1 psig) Process temperature –40 °C … +130 °C ATEX approval ATEX II 1G, 1/2G, 2G Ex ia IIC T6 Type examination KIWA 20ATEX0039 X RoHS certificate ✔ HART ✔ Indication Installed Control element Pushbutton operation Performance Accuracy of sensor element ≤ 5 mm Non-repeatability ≤ 1 mm Digital measurement resolution < 1 mm Analog measurement resolution 0.3 µA Digital output temperature drift ≤ 3 mm / 10 K, max. 10 mm Current output temperature drift ≤ 0.03% / 10 K relating to the 16 mA span or ≤ 0.3% Deviation on current output due to digital-analog conversion < 15 µA Measurement cycle time Approx. 700 ms Step response time ≤ 3 s MTBF 3,37*10^6 h Display ✔ Electronics Supply voltage 9 V DC … 30 V DC Protection class I (IEC 61010-1) Connection type M20 x 1.5 / cable gland PA black (ø 5 mm – 9 mm) Output signal 4 mA … 20 mA / HART Contamination rating 4 Enclosure rating IP67 / IP67 EMC EN 61326-1 Start-up current < 3.6 mA Overvoltage category III (IEC 61010-1) Short-circuit protection ✔ Isolation ✔ Mechanics Process connection Thread G 1 ½ PN20, DIN3852-A / 316L Housing material Plastic PBT (polyester) Housing design Single-chamber housing Sealing material FKM (SHS FPM 70C3 GLT) Antenna material PEEK Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27200505 ECLASS 5.1.4 27200505 ECLASS 6.0 27200505 ECLASS 6.2 27200505 ECLASS 7.0 27200505 ECLASS 8.0 27200505 ECLASS 8.1 27200505 ECLASS 9.0 27200505 ECLASS 10.0 27270807 ECLASS 11.0 27270807 ECLASS 12.0 27274501 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950
