Name: SICK 5326703 | Montaj Aksesuar | Royal Endüstriyel
Brand: SICK
SKU: 5326703
Price: 850.00 TRY
Availability: InStock

KUP-1010-D DOUBLE LOOP COUPLING – 5326703

✉ Teklif Al

Teklif Al

Tecnichal data

Technical specifications

Accessory group	Shaft adaptation
Accessory family	Shaft couplings

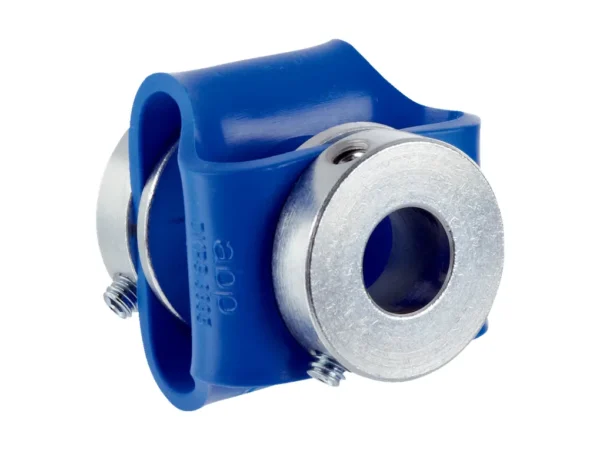

Description	Double loop coupling, shaft diameter 10 mm / 10 mm, Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°; max. speed 3,000 rpm, –30° to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange
Specialty	Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°; max. speed 3,000 rpm, –30° to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange

Classifications

KUP-1010-D DOUBLE LOOP COUPLING – 5326703
