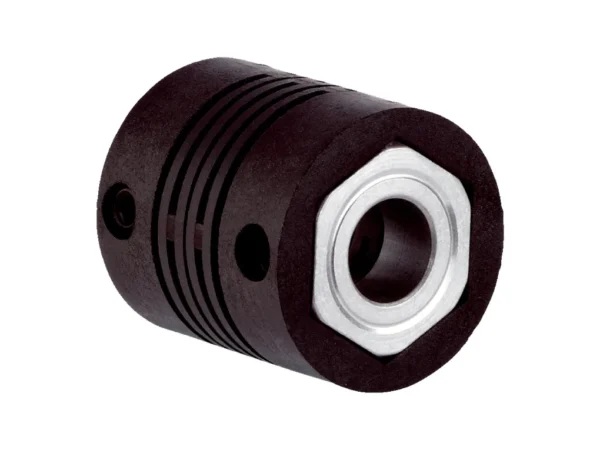

Home Diğer (Montaj / Aksesuar) KUP-0808-S BEAM COUPLING – 5314177 🔍 KUP-0808-S BEAM COUPLING – 5314177 ✉ Teklif Al Teklif Al Stok kodu: 5314177 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Technical specifications Accessory group Shaft adaptation Accessory family Shaft couplings Description Bar coupling, shaft diameter 8 mm /8 mm, maximum shaft offset radial ± 0.3 mm, axial ± 0.2 mm, angle ± 3°; max. speed 10,000 rpm, torsion spring rigidity 38 Nm/wheel; material: fiber-glass reinforced polyamide, aluminum hub Specialty Maximum shaft offset: radial +/- 0.3 mm, axial +/- 0.2 mm, angular +/- 3°; max. speed 10,000 rpm, –10° to +80 °C, max. torque 80 Ncm; material: fiber-glass reinforced polyamide, aluminum hub Classifications eCl@ss 5.0 23031090 eCl@ss 5.1.4 23031090 eCl@ss 6.0 23031090 eCl@ss 6.2 23031090 eCl@ss 7.0 23031090 eCl@ss 8.0 23031090 eCl@ss 8.1 23031090 eCl@ss 9.0 23031090 eCl@ss 10.0 23031090 eCl@ss 11.0 23031090 eCl@ss 12.0 23031090 UNSPSC 16.0901 31163014 İlgili ürünler IE-SFP/1250-ED MM850-LC – SFP-GMM-550AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSLX-SM1310/PLUS-SC – 808-38223AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 100BASE-FX, MM 2KM – SFP-100FX-M-2KM-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSBX-SM1310/PLUS-SC – 808-38229AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Technical specifications Accessory group Shaft adaptation Accessory family Shaft couplings Description Bar coupling, shaft diameter 8 mm /8 mm, maximum shaft offset radial ± 0.3 mm, axial ± 0.2 mm, angle ± 3°; max. speed 10,000 rpm, torsion spring rigidity 38 Nm/wheel; material: fiber-glass reinforced polyamide, aluminum hub Specialty Maximum shaft offset: radial +/- 0.3 mm, axial +/- 0.2 mm, angular +/- 3°; max. speed 10,000 rpm, –10° to +80 °C, max. torque 80 Ncm; material: fiber-glass reinforced polyamide, aluminum hub Classifications eCl@ss 5.0 23031090 eCl@ss 5.1.4 23031090 eCl@ss 6.0 23031090 eCl@ss 6.2 23031090 eCl@ss 7.0 23031090 eCl@ss 8.0 23031090 eCl@ss 8.1 23031090 eCl@ss 9.0 23031090 eCl@ss 10.0 23031090 eCl@ss 11.0 23031090 eCl@ss 12.0 23031090 UNSPSC 16.0901 31163014
