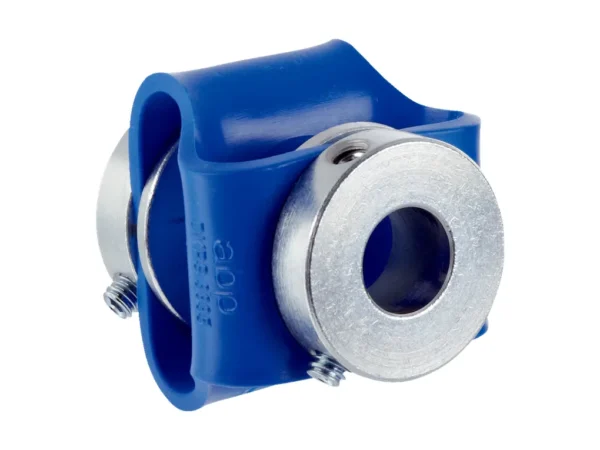

Home Diğer (Montaj / Aksesuar) KUP-0610-D DOUBLE LOOP COUPLING – 5326697 🔍 KUP-0610-D DOUBLE LOOP COUPLING – 5326697 ✉ Teklif Al Teklif Al Stok kodu: 5326697 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Technical specifications Accessory group Shaft adaptation Accessory family Shaft couplings Description Double loop coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radially +/- 2,5 mm, axially +/-3 mm, angle +/- 10 degrees;max. speed 3.000 rpm, –30 to +80 degrees Celsius, torsional spring stiffness of 25 Nm/rad Specialty Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°; max. speed 3,000 rpm, –30° to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange Classifications eCl@ss 5.0 23031190 eCl@ss 5.1.4 23031190 eCl@ss 6.0 23031190 eCl@ss 6.2 23031190 eCl@ss 7.0 23031190 eCl@ss 8.0 23031190 eCl@ss 8.1 23031190 eCl@ss 9.0 23031190 eCl@ss 10.0 23031190 eCl@ss 11.0 23031190 eCl@ss 12.0 23031190 UNSPSC 16.0901 31163014 İlgili ürünler SFP+-10G-ELR-IT, 1310nm, SM, 20km – 40 8 – SFP-XSM-LCI-20KAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSBX-SM1310-LC – 808-38727AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 1000BASE-LX, SM 10KM – SFP-1000LX-S-10KM-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP+-10G, TX – SFP-10GTXAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Technical specifications Accessory group Shaft adaptation Accessory family Shaft couplings Description Double loop coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radially +/- 2,5 mm, axially +/-3 mm, angle +/- 10 degrees;max. speed 3.000 rpm, –30 to +80 degrees Celsius, torsional spring stiffness of 25 Nm/rad Specialty Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°; max. speed 3,000 rpm, –30° to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange Classifications eCl@ss 5.0 23031190 eCl@ss 5.1.4 23031190 eCl@ss 6.0 23031190 eCl@ss 6.2 23031190 eCl@ss 7.0 23031190 eCl@ss 8.0 23031190 eCl@ss 8.1 23031190 eCl@ss 9.0 23031190 eCl@ss 10.0 23031190 eCl@ss 11.0 23031190 eCl@ss 12.0 23031190 UNSPSC 16.0901 31163014
