Name: SICK 1219607 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1219607
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Special applications	Standard
Device type	Standard
Dimensions (W x H x D)	30 mm x 53 mm x 78.5 mm
Sensing distance	≤ 13 mm
Sensing distance tolerance	± 5 mm
Housing design	Large
Light source	LED, RGB
Wave length	470 nm, 525 nm, 625 nm
Light emission	Short device side
Light spot size	0.9 mm x 3.8 mm
Light spot direction	Vertical
Receiving filters	None
Teach-in mode	1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode
Output function	Light/dark switching
Delay time	Adjustable
Special features	Complete access to all functions after unlocking All general sensor features available when unlocking the sensor via Plus/minus button – functionality like standard KTX
Delivery status	2-point teach-in
Parameter presettings	Key lock active, initially only teach-in possible
Setting the key lock	Standard Teach-in

Mechanics/electronics

Supply voltage	10.8 V DC … 28.8 V DC
Ripple	≤ 5 V_pp
Current consumption	< 100 mA
Switching frequency	50 kHz
Response time	10 µs
Jitter	5 µs
Switching output	PNP
Switching output (voltage)	PNP: HIGH = V_S – 3 V / LOW = 0 V
Output current I_max.	100 mA
Input, teach-in (ET)	Teach: U = 10 V … < V_S
Input, blanking input (AT)	Blanked: U = 10 V … < Uv
Input, fine/coarse (F/C)	Coarse: U = 10 V … < Uv
Input, light/dark (L/D)	Light: U = 10 V … < Uv
Retention time (ET)	25 ms, non-volatile memory
Connection type	Male connector M12, 5-pin
Protection class	III
Circuit protection	U_V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression
Enclosure rating	IP67
Weight	94 g
Housing material	Plastic, VISTAL®
Optics material	Plastic, COP

Ambient data

Ambient operating temperature	–20 °C … +60 °C
Ambient temperature, storage	–25 °C … +75 °C
Shock load	According to IEC 60068-2-27 (30 g/11 ms)
UL File No.	E181493

Classifications

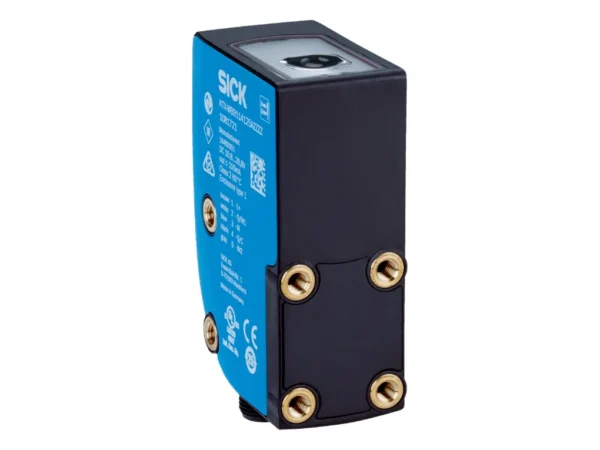

KTX-WP91142252ZZZZZEZZZZ2ZZZZ1 – 1219607
