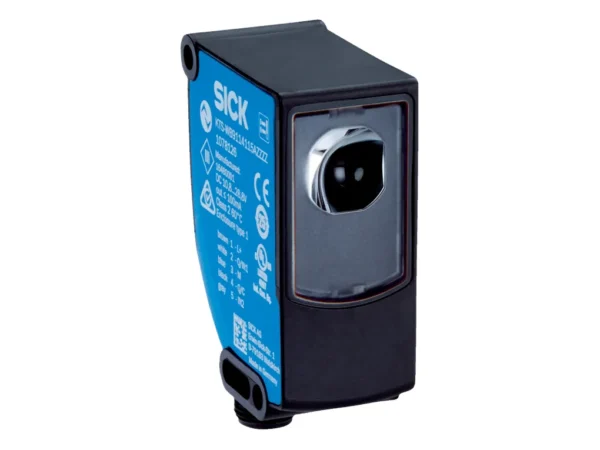

Home Fotoelektrik Sensörler KTS-WBN114115AZZZZNZZZZZZZZZZ1 – 1220040 🔍 KTS-WBN114115AZZZZNZZZZZZZZZZ1 – 1220040 ✉ Teklif Al Teklif Al Stok kodu: 1220040 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Special applications Color Sequence Device type Standard Dimensions (W x H x D) 26 mm x 62 mm x 47.5 mm Sensing distance ≤ 13 mm Sensing distance tolerance ± 5 mm Housing design Middle Light source LED, RGB Wave length 470 nm, 525 nm, 625 nm Light emission Long side of housing Light spot size 0.9 mm x 3.8 mm Light spot direction Vertical Receiving filters None Teach-in mode N-point teach-in, 2-point teach-in, teach-in dynamic, auto mode Output function Light/dark switching Delay time Adjustable Special features – Delivery status N-point-teach-in Parameter presettings None Setting the key lock Standard Mechanics/electronics Supply voltage 10.8 V DC … 28.8 V DC Ripple ≤ 5 Vpp Current consumption < 100 mA Switching frequency 11.5 kHz Response time 42 µs Jitter 21 µs Switching output Push-pull: PNP/NPN Switching output (voltage) Push-pull: PNP/NPN HIGH = UV – 3 V/LOW ≤ 3 V Output current Imax. 100 mA Input, teach-in (ET) Teach: U = 10 V … < VS Input, blanking input (AT) Blanked: U = 10 V … < Uv Input, fine/coarse (F/C) Coarse: U = 10 V … < Uv Input, light/dark (L/D) Light: U = 10 V … < Uv Retention time (ET) 25 ms, non-volatile memory Connection type Male connector M12, 5-pin Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Weight 68 g Housing material Plastic, VISTAL® Optics material Plastic, COP Communication interface IO-Link ✔ , IO-Link VendorID 26 DeviceID HEX 8000A8 DeviceID DEC 8388776 Process data structure Bit 0 = switching signal QL1 Bit 1 = empty Bit 2 = Quality of Run Alarm Bit 3 … 5 = Emission Color Bit 6 … 15 = Measurment Value Emission Color Digital output Q1, Q2 Number 2 Digital input In1, In2 Number 2 Ambient data Ambient operating temperature –20 °C … +60 °C Ambient temperature, storage –25 °C … +75 °C Shock load According to IEC 60068-2-27 (30 g/11 ms) UL File No. E181493 Classifications ECLASS 5.0 27270906 ECLASS 5.1.4 27270906 ECLASS 6.0 27270906 ECLASS 6.2 27270906 ECLASS 7.0 27270906 ECLASS 8.0 27270906 ECLASS 8.1 27270906 ECLASS 9.0 27270906 ECLASS 10.0 27270906 ECLASS 11.0 27270906 ECLASS 12.0 27270906 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 39121528 İlgili ürünler Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 120 mm Gap, Plastic, 3 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA4-P3ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git 18 mm Cylindrical Sensor, 18 mm Cylindrical, Transmitted Beam Source, Infrared, Not Adjustable Sensitivity, Transmitted Beam Source, DC Transmitted Beam Emitter, 4 Pin Micro Quick Disconnect, Plastic, 18mm Mount, 3 mm Minimum Sensing Distance, 16000 mm Op – 42CA-E1EZB1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Accessory, Series 4000 Photoelectric, Mounting Bracket, Right Angle – 60-1479ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensors – 42AF-E1UZB1-G4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Special applications Color Sequence Device type Standard Dimensions (W x H x D) 26 mm x 62 mm x 47.5 mm Sensing distance ≤ 13 mm Sensing distance tolerance ± 5 mm Housing design Middle Light source LED, RGB Wave length 470 nm, 525 nm, 625 nm Light emission Long side of housing Light spot size 0.9 mm x 3.8 mm Light spot direction Vertical Receiving filters None Teach-in mode N-point teach-in, 2-point teach-in, teach-in dynamic, auto mode Output function Light/dark switching Delay time Adjustable Special features – Delivery status N-point-teach-in Parameter presettings None Setting the key lock Standard Mechanics/electronics Supply voltage 10.8 V DC … 28.8 V DC Ripple ≤ 5 Vpp Current consumption < 100 mA Switching frequency 11.5 kHz Response time 42 µs Jitter 21 µs Switching output Push-pull: PNP/NPN Switching output (voltage) Push-pull: PNP/NPN HIGH = UV – 3 V/LOW ≤ 3 V Output current Imax. 100 mA Input, teach-in (ET) Teach: U = 10 V … < VS Input, blanking input (AT) Blanked: U = 10 V … < Uv Input, fine/coarse (F/C) Coarse: U = 10 V … < Uv Input, light/dark (L/D) Light: U = 10 V … < Uv Retention time (ET) 25 ms, non-volatile memory Connection type Male connector M12, 5-pin Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Weight 68 g Housing material Plastic, VISTAL® Optics material Plastic, COP Communication interface IO-Link ✔ , IO-Link VendorID 26 DeviceID HEX 8000A8 DeviceID DEC 8388776 Process data structure Bit 0 = switching signal QL1 Bit 1 = empty Bit 2 = Quality of Run Alarm Bit 3 … 5 = Emission Color Bit 6 … 15 = Measurment Value Emission Color Digital output Q1, Q2 Number 2 Digital input In1, In2 Number 2 Ambient data Ambient operating temperature –20 °C … +60 °C Ambient temperature, storage –25 °C … +75 °C Shock load According to IEC 60068-2-27 (30 g/11 ms) UL File No. E181493 Classifications ECLASS 5.0 27270906 ECLASS 5.1.4 27270906 ECLASS 6.0 27270906 ECLASS 6.2 27270906 ECLASS 7.0 27270906 ECLASS 8.0 27270906 ECLASS 8.1 27270906 ECLASS 9.0 27270906 ECLASS 10.0 27270906 ECLASS 11.0 27270906 ECLASS 12.0 27270906 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 39121528
