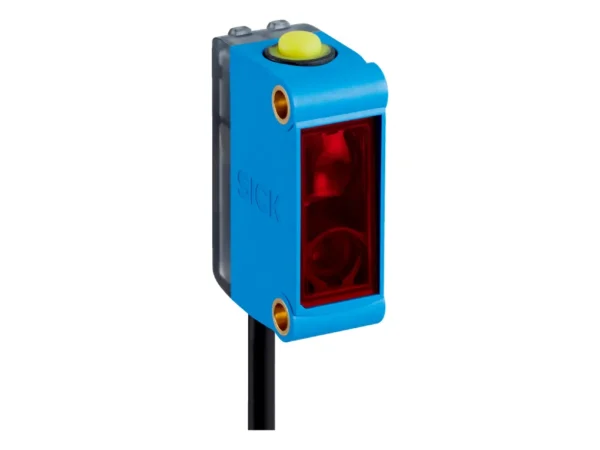

Home Fotoelektrik Sensörler KTM-LP55182P – 1105836 🔍 KTM-LP55182P – 1105836 ✉ Teklif Al Teklif Al Stok kodu: 1105836 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm Sensing distance ≤ 250 mm Sensing distance tolerance ± 30 mm Housing design Small Light source Laser, red Laser class I Wave length 680 nm Light emission Long side of housing Light spot size Ø 1.8 mm (250 mm) Light spot direction Round Receiving filters None Max. web speed 10 m/s Adjustment Teach-in button Teach-in mode 2-point teach-in static/dynamic + proximity to mark ET: Teach-in dynamic Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 5 Vpp Current consumption < 35 mA Switching frequency 1.5 kHz Response time 0.333 ms Jitter 122 µs Accuracy 0.15 mm Switching output PNP Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V Switching mode Light/dark switching Output current Imax. 100 mA Input, dynamic teach-in (ET) PNP: Teach: U = 10,8 V … < UV PNP: Run: U < 2 V or open Retention time (ET) 250 ms Time delay None Connection type Cable with M12 male connector, 4-pin, 0.3 m Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Weight Approx. 24 g Housing material Plastic, ABS Optics material Plastic, PMMA Indication LED indicator green: power on LED indicator, yellow: Status switching output Q Ambient data Ambient operating temperature –20 °C … +50 °C Ambient temperature, storage –40 °C … +70 °C Shock load According to IEC 60068 UL File No. E181493 Classifications ECLASS 5.0 27270906 ECLASS 5.1.4 27270906 ECLASS 6.0 27270906 ECLASS 6.2 27270906 ECLASS 7.0 27270906 ECLASS 8.0 27270906 ECLASS 8.1 27270906 ECLASS 9.0 27270906 ECLASS 10.0 27270906 ECLASS 11.0 27270906 ECLASS 12.0 27270906 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 39121528 Connection/Pin assignment Connection type Cable with M12 male connector, 4-pin, 0.3 m Pin assignment BN 1 + (L+) WH 2 ET BU 3 – (M) BK 4 Q İlgili ürünler Endüstriyel bağlantı kablosu – 42CA-U2MPB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Accessory, Series 4000 Photoelectric, Mounting Bracket, Right Angle – 60-1479ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensors – 42AF-R1CHB1-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Accessories, Reflector, Fog Resistant, 100X100 mm – 92-108ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm Sensing distance ≤ 250 mm Sensing distance tolerance ± 30 mm Housing design Small Light source Laser, red Laser class I Wave length 680 nm Light emission Long side of housing Light spot size Ø 1.8 mm (250 mm) Light spot direction Round Receiving filters None Max. web speed 10 m/s Adjustment Teach-in button Teach-in mode 2-point teach-in static/dynamic + proximity to mark ET: Teach-in dynamic Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 5 Vpp Current consumption < 35 mA Switching frequency 1.5 kHz Response time 0.333 ms Jitter 122 µs Accuracy 0.15 mm Switching output PNP Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V Switching mode Light/dark switching Output current Imax. 100 mA Input, dynamic teach-in (ET) PNP: Teach: U = 10,8 V … < UV PNP: Run: U < 2 V or open Retention time (ET) 250 ms Time delay None Connection type Cable with M12 male connector, 4-pin, 0.3 m Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Weight Approx. 24 g Housing material Plastic, ABS Optics material Plastic, PMMA Indication LED indicator green: power on LED indicator, yellow: Status switching output Q Ambient data Ambient operating temperature –20 °C … +50 °C Ambient temperature, storage –40 °C … +70 °C Shock load According to IEC 60068 UL File No. E181493 Classifications ECLASS 5.0 27270906 ECLASS 5.1.4 27270906 ECLASS 6.0 27270906 ECLASS 6.2 27270906 ECLASS 7.0 27270906 ECLASS 8.0 27270906 ECLASS 8.1 27270906 ECLASS 9.0 27270906 ECLASS 10.0 27270906 ECLASS 11.0 27270906 ECLASS 12.0 27270906 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 39121528 Connection/Pin assignment Connection type Cable with M12 male connector, 4-pin, 0.3 m Pin assignment BN 1 + (L+) WH 2 ET BU 3 – (M) BK 4 Q
