Name: SICK 1105838 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1105838
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Dimensions (W x H x D)	12 mm x 31.5 mm x 21 mm
Sensing distance	≤ 250 mm
Sensing distance tolerance	± 30 mm
Housing design	Small
Light source	Laser, red
Laser class	I
Wave length	680 nm
Light emission	Long side of housing
Light spot size	Ø 1.8 mm (250 mm)
Light spot direction	Round
Receiving filters	None
Max. web speed	10 m/s
Adjustment	Teach-in button
Teach-in mode	2-point teach-in static/dynamic + proximity to mark ET: Teach-in dynamic

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 5 V_pp
Current consumption	< 35 mA
Switching frequency	1.5 kHz
Response time	0.333 ms
Jitter	122 µs
Accuracy	0.15 mm
Switching output	NPN
Switching output (voltage)	NPN: HIGH = approx. U_V/ LOW ≤ 2 V
Switching mode	Light/dark switching
Output current I_max.	100 mA
Input, dynamic teach-in (ET)	NPN: Teach: U < 2 V NPN: Run: U_V – 2 V or open
Retention time (ET)	250 ms
Time delay	None
Connection type	Cable with M12 male connector, 4-pin, 0.3 m
Protection class	III
Circuit protection	U_V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression
Enclosure rating	IP67
Weight	Approx. 24 g
Housing material	Plastic, ABS
Optics material	Plastic, PMMA
Indication	LED indicator green: power on LED indicator, yellow: Status switching output Q

Ambient data

Ambient operating temperature	–20 °C … +50 °C
Ambient temperature, storage	–40 °C … +70 °C
Shock load	According to IEC 60068
UL File No.	E181493

Classifications

Connection/Pin assignment

Connection type

Cable with M12 male connector, 4-pin, 0.3 m

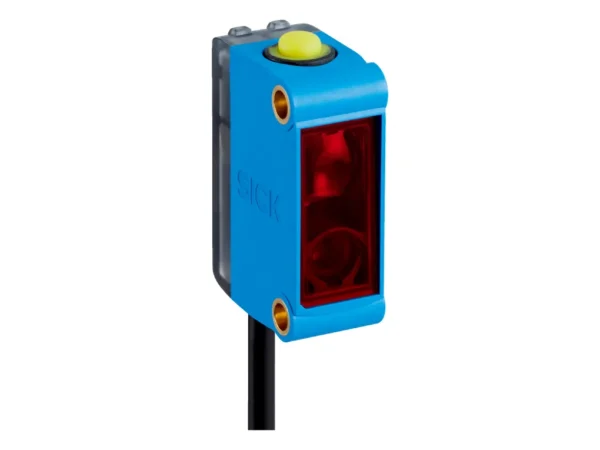

KTM-LN55182P – 1105838
