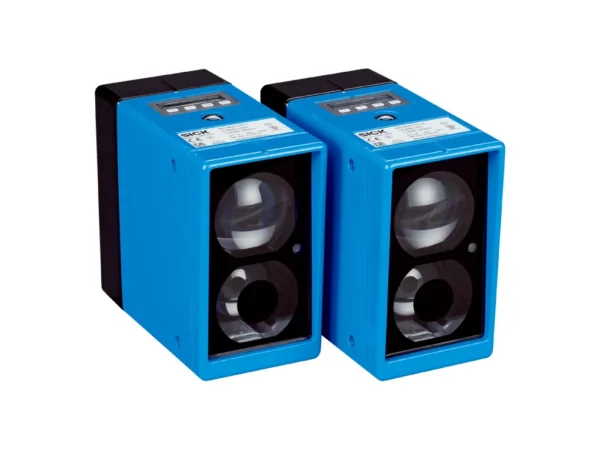

1 x Ethernet female connector M12, 4-pin, D-coded 1 x power supply male connector M12, 4-pin, A-coded
Frequency
F2
Enclosure rating
IP65
Protection class
III
Performance
Transmission range
0.2 m … 200 m
Light source
Laser, red (660 nm)
Laser, infrared (785 nm)
Laser class
1M (IEC 60825-1:2014, EN 60825-1:2014)
Typ. light spot size (distance)
1.75 m (at 100 m)
Aperture angle
1° (sender)
1.5° (receiver)
Interfaces
Ethernet
✔
Data transmission rate
100 Mbit/s
Digital input
Vs: sender deactivated
Digital output
Number
1
Type
Push-pull: PNP/NPN
Function
Output active for LOW and HIGH level
Warning messages as the laser ages, if the permissible limits of the interior device temperature are exceeded or undercut, if the optical path is interrupted, if no Ethernet cable is connected, if the receiving level is undercut, if the laser is not ready for operation, if the heating is switched on.
Ambient data
Electromagnetic compatibility (EMC)
EN 61000-6-2
EN 61000-6-4
Ambient temperature, operation
–20 °C … +55 °C
Ambient temperature, storage
–40 °C … +75 °C
Max. rel. humidity (not condensing)
90 %, Non-condensing
General notes
Note
Setting up a data transmission path requires a pair of devices, where one device has frequency F1 (ISD400-7xx1) and the other device has frequency F2 (ISD400-7xx2). A wide variety of Ethernet protocols can be used in protocol-free transmission (e.g., PROFINET, PROFIsafe, EtherNet/IP, EtherCAT, TCP/IP, etc.).
