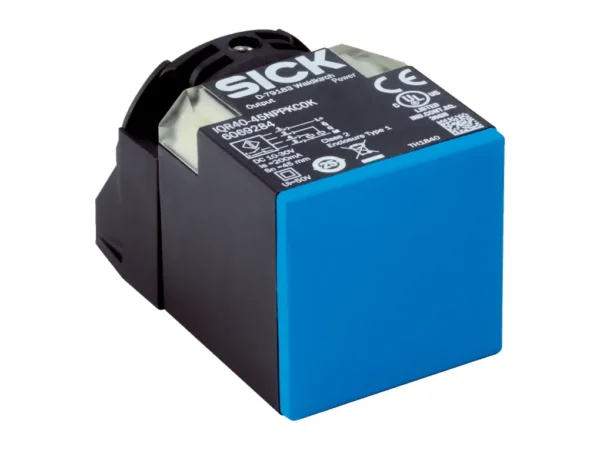

Name: SICK 6069283 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 6069283
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Housing	Rectangular
Housing	Short-body
Dimensions (W x H x D)	40 mm x 40 mm x 65 mm
Sensing range S_n	20 mm
Safe sensing range S_a	16.2 mm
Installation type	Flush
Switching frequency	250 Hz
Connection type	Male connector M12, 4-pin
Switching output	PNP
Output function	Complementary
Electrical wiring	DC 4-wire
Enclosure rating	IP68
Special features	Reduction factor 1, Weld immune
Special applications	Welding range, Difficult application conditions
Items supplied	Clamp-lock mounting system (1x)

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 1.8 V
Hysteresis	3 % … 15 %
Reproducibility	≤ 2 %
Temperature drift (of S_r)	≤ ± 10 % ≤ ± 15 %
Continuous current I_a	≤ 200 mA
No load current	≤ 15 mA
Off-state current	≤ 0.1 mA
Short-circuit protection	✔
Reverse polarity protection	✔
Magnetic field strength	≤ 100 mT
Shock and vibration resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature	–30 °C … +85 °C
Housing material	Plastic, PBT
Sensing face material	Plastic, PBT
Protection class	II
UL File No.	E191603

Safety-related parameters

Reduction factors

Note	The values are reference values which may vary
Reduction factor	Reduction factor 1
Stainless steel (V2A, 304)	1
Aluminum (Al)	1
Copper (Cu)	1
Brass (Br)	1

Installation note

Remark	Associated graphic see “Installation”
A	20 mm
B	40 mm
C	40 mm
D	90 mm
E	0 mm
F	180 mm
