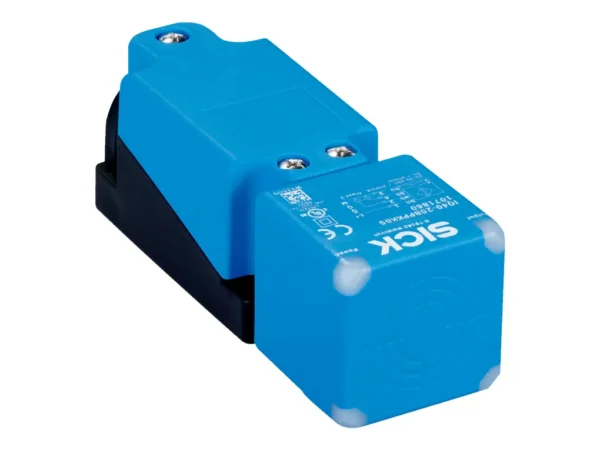

Home Endüktif Sensörler IQ40-40NPSKK0S – 1071851 🔍 IQ40-40NPSKK0S – 1071851 ✉ Teklif Al Teklif Al Stok kodu: 1071851 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Rectangular Housing Standard design Dimensions (W x H x D) 40 mm x 40 mm x 118 mm Sensing range Sn 40 mm Safe sensing range Sa 32.4 mm Installation type Non-flush Switching frequency 100 Hz Connection type Cable gland Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67, IP68, IP69K Special applications Difficult application conditions Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 Vpp Voltage drop ≤ 2 V Time delay before availability ≤ 50 ms Hysteresis 3 % … 15 % Reproducibility ≤ 6 % Temperature drift (of Sr) ± 10 % Continuous current Ia ≤ 200 mA No load current 12.5 mA Cable gland clamping area M20 1.5 Wire size ≤ 2.5 mm² Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +85 °C Ambient temperature, storage –40 °C … +85 °C Housing material Plastic, PA 66 Sensing face material Plastic, PA 66 Tightening torque, max. 1.8 Nm Protection class II UL File No. E348498 Safety-related parameters MTTFD 1,125 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.34 Copper (Cu) Approx. 0.27 Brass (Br) Approx. 0.38 Installation note Remark Associated graphic see “Installation” A 42 mm B 150 mm C 40 mm D 120 mm E 40 mm F 150 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor – 871L-B20E40-N3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor – 872C-DX34-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Accessories, AC Micro Dual Key, Male (External Threads), Straight, 3-Pin, 6-8mm (0.24-0.31) PG9, Standard Materials, Standard – 871A-TS3-RM1ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 18 mm Barrel Inductive Prox Sensor – 872C-DH8NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Rectangular Housing Standard design Dimensions (W x H x D) 40 mm x 40 mm x 118 mm Sensing range Sn 40 mm Safe sensing range Sa 32.4 mm Installation type Non-flush Switching frequency 100 Hz Connection type Cable gland Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67, IP68, IP69K Special applications Difficult application conditions Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 Vpp Voltage drop ≤ 2 V Time delay before availability ≤ 50 ms Hysteresis 3 % … 15 % Reproducibility ≤ 6 % Temperature drift (of Sr) ± 10 % Continuous current Ia ≤ 200 mA No load current 12.5 mA Cable gland clamping area M20 1.5 Wire size ≤ 2.5 mm² Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +85 °C Ambient temperature, storage –40 °C … +85 °C Housing material Plastic, PA 66 Sensing face material Plastic, PA 66 Tightening torque, max. 1.8 Nm Protection class II UL File No. E348498 Safety-related parameters MTTFD 1,125 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.34 Copper (Cu) Approx. 0.27 Brass (Br) Approx. 0.38 Installation note Remark Associated graphic see “Installation” A 42 mm B 150 mm C 40 mm D 120 mm E 40 mm F 150 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
