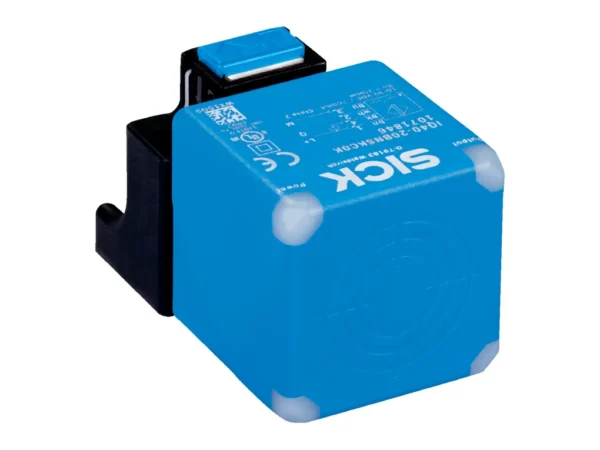

Name: SICK 1071852 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1071852
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Housing	Rectangular
Housing	Short-body
Dimensions (W x H x D)	40 mm x 40 mm x 66 mm
Sensing range S_n	40 mm
Safe sensing range S_a	32.4 mm
Installation type	Non-flush
Switching frequency	100 Hz
Connection type	Male connector M12, 4-pin
Switching output	PNP
Output function	NC
Electrical wiring	DC 3-wire
Enclosure rating	IP67, IP68, IP69K
Special applications	Difficult application conditions
Items supplied	Push-lock mounting system (1x)

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 10 V_pp
Voltage drop	≤ 2 V
Time delay before availability	≤ 50 ms
Hysteresis	3 % … 15 %
Reproducibility	≤ 6 %
Temperature drift (of S_r)	± 10 %
Continuous current I_a	≤ 200 mA
No load current	12.5 mA
Short-circuit protection	✔
Reverse polarity protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature	–25 °C … +85 °C
Ambient temperature, storage	–40 °C … +85 °C
Housing material	Plastic, PA 66
Sensing face material	Plastic, PA 66
Tightening torque, max.	1.8 Nm
Protection class	II
UL File No.	E348498

Safety-related parameters

Reduction factors

Note	The values are reference values which may vary
Stainless steel (V2A, 304)	Approx. 0.8
Aluminum (Al)	Approx. 0.34
Copper (Cu)	Approx. 0.27
Brass (Br)	Approx. 0.38

Installation note

Remark	Associated graphic see “Installation”
A	42 mm
B	150 mm
C	40 mm
D	120 mm
E	40 mm
F	150 mm

Classifications
