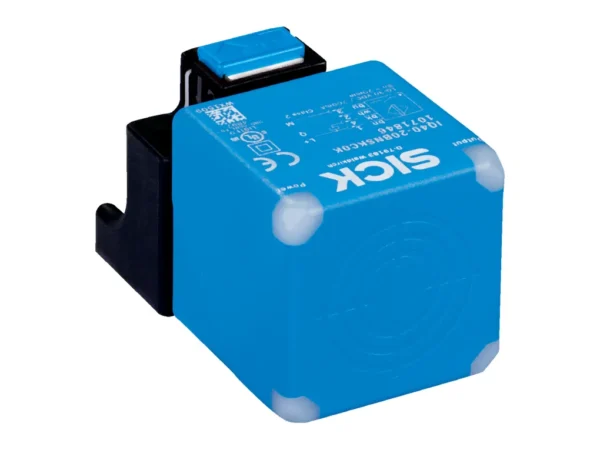

Home Endüktif Sensörler IQ40-40NNPKC0K – 1071864 🔍 IQ40-40NNPKC0K – 1071864 ✉ Teklif Al Teklif Al Stok kodu: 1071864 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Rectangular Housing Short-body Dimensions (W x H x D) 40 mm x 40 mm x 66 mm Sensing range Sn 40 mm Safe sensing range Sa 32.4 mm Installation type Non-flush Switching frequency 100 Hz Connection type Male connector M12, 4-pin Switching output NPN Output function Complementary Electrical wiring DC 4-wire Enclosure rating IP67, IP68, IP69K Special applications Difficult application conditions Items supplied Push-lock mounting system (1x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 Vpp Voltage drop ≤ 2 V Time delay before availability ≤ 200 ms Hysteresis 3 % … 15 % Reproducibility ≤ 6 % Temperature drift (of Sr) ± 10 % Continuous current Ia ≤ 200 mA No load current 12.5 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +85 °C Ambient temperature, storage –40 °C … +85 °C Housing material Plastic, PA 66 Sensing face material Plastic, PA 66 Tightening torque, max. 1.8 Nm Protection class II UL File No. E348498 Safety-related parameters MTTFD 1,125 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.34 Copper (Cu) Approx. 0.27 Brass (Br) Approx. 0.38 Installation note Remark Associated graphic see “Installation” A 42 mm B 150 mm C 40 mm D 120 mm E 40 mm F 150 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Accessories, AC Micro Dual Key, Male (External Threads), Straight, 3-Pin, 6-8mm (0.24-0.31) PG9, Standard Materials, Standard – 871A-TS3-RM1ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3N12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-MM1NP7-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Rectangular Housing Short-body Dimensions (W x H x D) 40 mm x 40 mm x 66 mm Sensing range Sn 40 mm Safe sensing range Sa 32.4 mm Installation type Non-flush Switching frequency 100 Hz Connection type Male connector M12, 4-pin Switching output NPN Output function Complementary Electrical wiring DC 4-wire Enclosure rating IP67, IP68, IP69K Special applications Difficult application conditions Items supplied Push-lock mounting system (1x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 Vpp Voltage drop ≤ 2 V Time delay before availability ≤ 200 ms Hysteresis 3 % … 15 % Reproducibility ≤ 6 % Temperature drift (of Sr) ± 10 % Continuous current Ia ≤ 200 mA No load current 12.5 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +85 °C Ambient temperature, storage –40 °C … +85 °C Housing material Plastic, PA 66 Sensing face material Plastic, PA 66 Tightening torque, max. 1.8 Nm Protection class II UL File No. E348498 Safety-related parameters MTTFD 1,125 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.34 Copper (Cu) Approx. 0.27 Brass (Br) Approx. 0.38 Installation note Remark Associated graphic see “Installation” A 42 mm B 150 mm C 40 mm D 120 mm E 40 mm F 150 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
