Name: SICK 1071845 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1071845
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Housing	Rectangular
Housing	Standard design
Dimensions (W x H x D)	40 mm x 40 mm x 118 mm
Sensing range S_n	20 mm
Safe sensing range S_a	16.2 mm
Installation type	Flush
Switching frequency	150 Hz
Connection type	Cable gland
Switching output	PNP
Output function	NC
Electrical wiring	DC 3-wire
Enclosure rating	IP67, IP68, IP69K
Special applications	Difficult application conditions

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 10 V_pp
Voltage drop	≤ 2 V
Time delay before availability	≤ 50 ms
Hysteresis	3 % … 15 %
Reproducibility	≤ 2 %
Temperature drift (of S_r)	± 10 %
Continuous current I_a	≤ 200 mA
No load current	12.5 mA
Cable gland clamping area	M20 1.5
Wire size	≤ 2.5 mm²
Short-circuit protection	✔
Reverse polarity protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature	–25 °C … +85 °C
Ambient temperature, storage	–40 °C … +85 °C
Housing material	Plastic, PA 66
Sensing face material	Plastic, PA 66
Tightening torque, max.	1.8 Nm
Protection class	II
UL File No.	E348498

Safety-related parameters

Reduction factors

Note	The values are reference values which may vary
Stainless steel (V2A, 304)	Approx. 0.71
Aluminum (Al)	Approx. 0.3
Copper (Cu)	Approx. 0.25
Brass (Br)	Approx. 0.36

Installation note

Remark	Associated graphic see “Installation”
A	0 mm
B	40 mm
C	40 mm
D	60 mm
E	0 mm
F	70 mm

Classifications

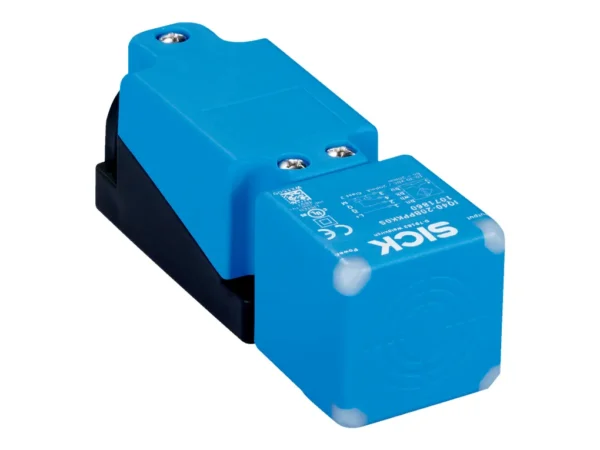

IQ40-20BPOKK0S – 1071845
