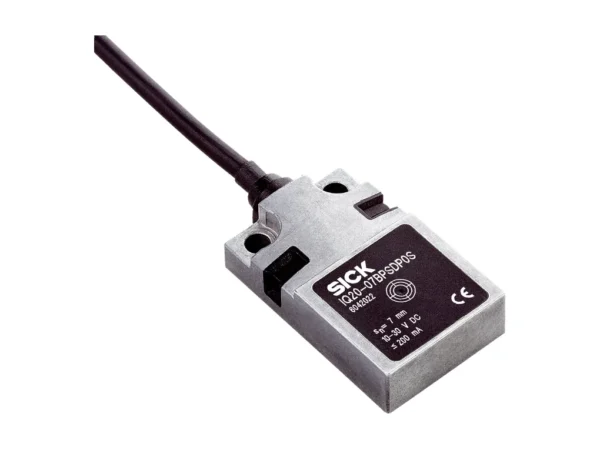

Name: SICK 6042043 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 6042043
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage drop	< 2.5 V
Time delay before availability	≤ 20 ms
Hysteresis	1 % … 15 %
Reproducibility	± 5 %
Temperature drift (of S_r)	± 10 %
EMC	According to EN 60947-5-2
Continuous current I_a	≤ 200 mA
Cable material	PUR
Short-circuit protection	✔
Reverse polarity protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature	–25 °C … +70 °C
Housing material	Zinc diecast, GD Zn
Sensing face material	Plastic, PA12
UL File No.	E191603

Safety-related parameters

Reduction factors

Note	The values are reference values which may vary
Stainless steel (V2A, 304)	Approx. 0.7
Aluminum (Al)	Approx. 0.4
Copper (Cu)	Approx. 0.3
Brass (Br)	Approx. 0.4

Installation note

Remark	Associated graphic see “Installation”
A	0 mm
B	20 mm
C	20 mm
D	21 mm
E	0 mm
F	60 mm

Classifications
