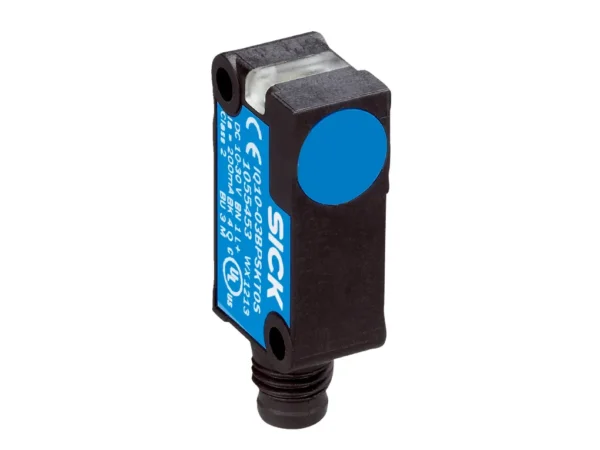

Home Endüktif Sensörler IQ10-04BPPKW2SS19 – 1096031 🔍 IQ10-04BPPKW2SS19 – 1096031 ✉ Teklif Al Teklif Al Stok kodu: 1096031 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 10 mm x 28 mm x 16 mm Sensing range Sn 4 mm Safe sensing range Sa 3.2 mm Installation type Flush Switching frequency 2,000 Hz Connection type Cable, 4-wire, 2 m Switching output PNP Output function Complementary Electrical wiring DC 4-wire Enclosure rating IP68 Special features Triple sensing range Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 3 V Time delay before availability ≤ 100 ms Hysteresis 0 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current 10 mA Cable material PVC Conductor size 0.25 mm² Cable diameter Ø 3.7 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Plastic, VISTAL® Sensing face material Plastic, VISTAL® Tightening torque, max. ≤ 1 Nm Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) 0.7 Aluminum (Al) 0.4 Copper (Cu) 0.3 Brass (Br) 0.5 Installation note Remark Associated graphic see “Installation” A 0 mm B 12 mm C 10.3 mm D 12 mm E 0 mm F 32 mm G 0 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor – 871L-B20E40-N3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-MM1NP7-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Metal Face, Short Barrel, 18 mm Barrel Diameter, DC, 5 mm Sensing Distance, DC NOC Sourcing, Micro Quick Disconnect – 871TM-DH5NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Metal Face, Short Barrel, 30 mm Barrel Diameter, DC, 10 mm Sensing Distance, DC NOC Sourcing, Micro Quick Disconnect – 871TM-DH10NP30-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 10 mm x 28 mm x 16 mm Sensing range Sn 4 mm Safe sensing range Sa 3.2 mm Installation type Flush Switching frequency 2,000 Hz Connection type Cable, 4-wire, 2 m Switching output PNP Output function Complementary Electrical wiring DC 4-wire Enclosure rating IP68 Special features Triple sensing range Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 3 V Time delay before availability ≤ 100 ms Hysteresis 0 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current 10 mA Cable material PVC Conductor size 0.25 mm² Cable diameter Ø 3.7 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Plastic, VISTAL® Sensing face material Plastic, VISTAL® Tightening torque, max. ≤ 1 Nm Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) 0.7 Aluminum (Al) 0.4 Copper (Cu) 0.3 Brass (Br) 0.5 Installation note Remark Associated graphic see “Installation” A 0 mm B 12 mm C 10.3 mm D 12 mm E 0 mm F 32 mm G 0 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
