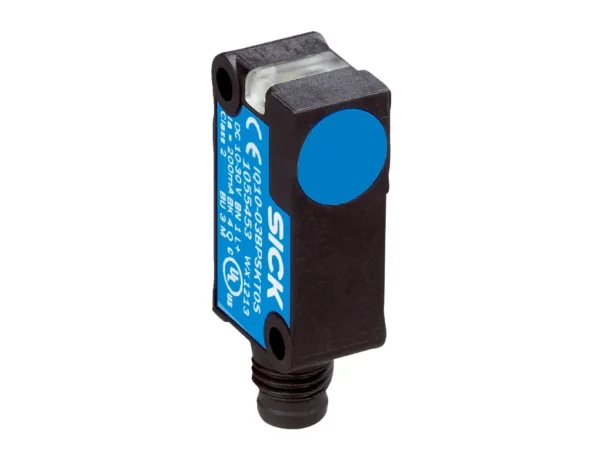

Home Endüktif Sensörler IQ10-03BPOKU2S – 1078310 🔍 IQ10-03BPOKU2S – 1078310 ✉ Teklif Al Teklif Al Stok kodu: 1078310 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 10 mm x 28 mm x 16 mm Sensing range Sn 3 mm Safe sensing range Sa 2.43 mm Installation type Flush Switching frequency 2,000 Hz Connection type Cable, 3-wire, 2 m Switching output PNP Output function NC Electrical wiring DC 3-wire Enclosure rating IP68 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Time delay before availability ≤ 100 ms Hysteresis 5 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current 10 mA Cable material PUR Conductor size 0.25 mm² Cable diameter Ø 3.7 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Plastic, VISTAL® Sensing face material Plastic, VISTAL® Tightening torque, max. ≤ 1 Nm Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) 0.7 Aluminum (Al) 0.4 Copper (Cu) 0.3 Brass (Br) 0.5 Installation note Remark Associated graphic see “Installation” A 0 mm B 10 mm C 10.3 mm D 9 mm E 0 mm F 24 mm G 0 mm Classifications eCl@ss 5.0 27270101 eCl@ss 5.1.4 27270101 eCl@ss 6.0 27270101 eCl@ss 6.2 27270101 eCl@ss 7.0 27270101 eCl@ss 8.0 27270101 eCl@ss 8.1 27270101 eCl@ss 9.0 27270101 eCl@ss 10.0 27270101 eCl@ss 11.0 27270101 eCl@ss 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Sensor, Inductive, Limit Switch Style, High – Selectable Output, 60-132V AC, AC, 13 mm Sensing Range, Top Sensing, 2 Wire, Conduit Coupler, Shielded – 802PR-LACJ2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-MM1NP7-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Sensor, Inductive, Limit Switch Style, High – Normally Open Output, 102-132V AC, AC, 13 mm Sensing Range, Top Sensing, 2 Wire, 1/2 in.-14 NPT Conduit, Shielded – 802PR-LAAH1ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 10 mm x 28 mm x 16 mm Sensing range Sn 3 mm Safe sensing range Sa 2.43 mm Installation type Flush Switching frequency 2,000 Hz Connection type Cable, 3-wire, 2 m Switching output PNP Output function NC Electrical wiring DC 3-wire Enclosure rating IP68 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Time delay before availability ≤ 100 ms Hysteresis 5 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current 10 mA Cable material PUR Conductor size 0.25 mm² Cable diameter Ø 3.7 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Plastic, VISTAL® Sensing face material Plastic, VISTAL® Tightening torque, max. ≤ 1 Nm Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) 0.7 Aluminum (Al) 0.4 Copper (Cu) 0.3 Brass (Br) 0.5 Installation note Remark Associated graphic see “Installation” A 0 mm B 10 mm C 10.3 mm D 9 mm E 0 mm F 24 mm G 0 mm Classifications eCl@ss 5.0 27270101 eCl@ss 5.1.4 27270101 eCl@ss 6.0 27270101 eCl@ss 6.2 27270101 eCl@ss 7.0 27270101 eCl@ss 8.0 27270101 eCl@ss 8.1 27270101 eCl@ss 9.0 27270101 eCl@ss 10.0 27270101 eCl@ss 11.0 27270101 eCl@ss 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
