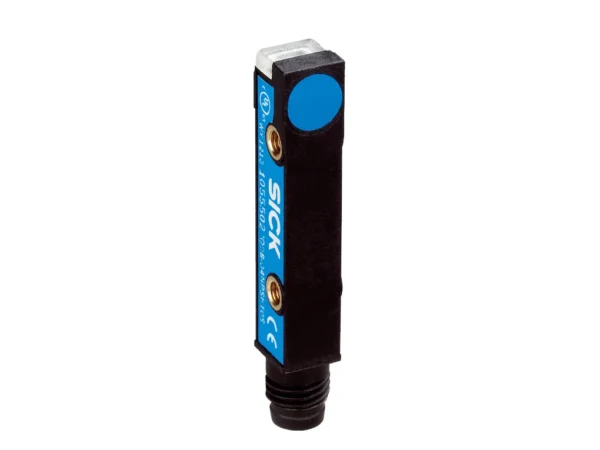

Home Endüktif Sensörler IQ08-04NPSKQDSS11 – 1081463 🔍 IQ08-04NPSKQDSS11 – 1081463 ✉ Teklif Al Teklif Al Stok kodu: 1081463 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 8 mm x 40 mm x 8 mm Sensing range Sn 4 mm Safe sensing range Sa 3.24 mm Installation type Non-flush Switching frequency 2,000 Hz Connection type Cable with connector M12, 4-pin, angled, 0.3 m Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67, IP68 Special characteristic Pin alignment rotated by 135° Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Time delay before availability ≤ 100 ms Hysteresis 5 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current 10 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Plastic, VISTAL® Sensing face material Plastic, VISTAL® Tightening torque, max. ≤ 1.5 Nm UL File No. NRKH.E348498 Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.7 Aluminum (Al) Approx. 0.5 Copper (Cu) Approx. 0.4 Brass (Br) Approx. 0.5 Installation note Remark Associated graphic see “Installation” A 4 mm B 24 mm C 8 mm D 12 mm E 20 mm F 32 mm G 8 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor – 871L-B20E40-N3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 18 mm Barrel Inductive Prox Sensor – 872C-DH8NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 12 mm Barrel Inductive Prox Sensor – 872C-N8NP12-E5ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Limit Style Inductive Sensor, 40 mm, AC/DC, 20 mm Sensing Distance, 1 NOC & 3 NCC, AC Conduit Style – 871L-B20E40-T2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 8 mm x 40 mm x 8 mm Sensing range Sn 4 mm Safe sensing range Sa 3.24 mm Installation type Non-flush Switching frequency 2,000 Hz Connection type Cable with connector M12, 4-pin, angled, 0.3 m Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67, IP68 Special characteristic Pin alignment rotated by 135° Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Time delay before availability ≤ 100 ms Hysteresis 5 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current 10 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Plastic, VISTAL® Sensing face material Plastic, VISTAL® Tightening torque, max. ≤ 1.5 Nm UL File No. NRKH.E348498 Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.7 Aluminum (Al) Approx. 0.5 Copper (Cu) Approx. 0.4 Brass (Br) Approx. 0.5 Installation note Remark Associated graphic see “Installation” A 4 mm B 24 mm C 8 mm D 12 mm E 20 mm F 32 mm G 8 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
