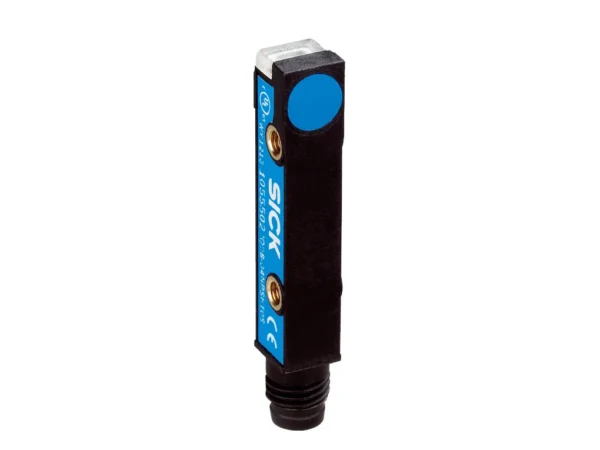

Home Endüktif Sensörler IQ08-02BPOKW4SS08 – 1076878 🔍 IQ08-02BPOKW4SS08 – 1076878 ✉ Teklif Al Teklif Al Stok kodu: 1076878 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 8 mm x 40 mm x 8 mm Sensing range Sn 2 mm Safe sensing range Sa 1.62 mm Installation type Flush Switching frequency 2,000 Hz Connection type Cable, 3-wire, 4 m Switching output PNP Output function NC Electrical wiring DC 3-wire Enclosure rating IP67, IP68 Special characteristic With mounting hole Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Time delay before availability ≤ 100 ms Hysteresis 5 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current 10 mA Cable material PVC Conductor size 0.14 mm² Cable diameter Ø 2.9 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Plastic, VISTAL® Sensing face material Plastic, VISTAL® Tightening torque, max. ≤ 1.5 Nm UL File No. NRKH.E348498 Safety-related parameters MTTFD 1,730 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.7 Aluminum (Al) Approx. 0.3 Copper (Cu) Approx. 0.2 Brass (Br) Approx. 0.3 Installation note Remark Associated graphic see “Installation” A 0 mm B 10 mm C 8 mm D 6 mm E 0 mm F 16 mm G 0 mm Classifications eCl@ss 5.0 27270101 eCl@ss 5.1.4 27270101 eCl@ss 6.0 27270101 eCl@ss 6.2 27270101 eCl@ss 7.0 27270101 eCl@ss 8.0 27270101 eCl@ss 8.1 27270101 eCl@ss 9.0 27270101 eCl@ss 10.0 27270101 eCl@ss 11.0 27270101 eCl@ss 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Sensor, Inductive, Limit Switch Style, High – Normally Open Output, 102-132V AC, AC, Hazardous Location, 13 mm Sensing Range, 2 Wire, Conduit, Shielded, Top – 802PR-LAAJ3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 12 mm Barrel Inductive Prox Sensor – 872C-N8NP12-E5ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 18 mm Barrel Inductive Prox Sensor – 872C-DH8NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-D3NP12-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 8 mm x 40 mm x 8 mm Sensing range Sn 2 mm Safe sensing range Sa 1.62 mm Installation type Flush Switching frequency 2,000 Hz Connection type Cable, 3-wire, 4 m Switching output PNP Output function NC Electrical wiring DC 3-wire Enclosure rating IP67, IP68 Special characteristic With mounting hole Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Time delay before availability ≤ 100 ms Hysteresis 5 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current 10 mA Cable material PVC Conductor size 0.14 mm² Cable diameter Ø 2.9 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Plastic, VISTAL® Sensing face material Plastic, VISTAL® Tightening torque, max. ≤ 1.5 Nm UL File No. NRKH.E348498 Safety-related parameters MTTFD 1,730 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.7 Aluminum (Al) Approx. 0.3 Copper (Cu) Approx. 0.2 Brass (Br) Approx. 0.3 Installation note Remark Associated graphic see “Installation” A 0 mm B 10 mm C 8 mm D 6 mm E 0 mm F 16 mm G 0 mm Classifications eCl@ss 5.0 27270101 eCl@ss 5.1.4 27270101 eCl@ss 6.0 27270101 eCl@ss 6.2 27270101 eCl@ss 7.0 27270101 eCl@ss 8.0 27270101 eCl@ss 8.1 27270101 eCl@ss 9.0 27270101 eCl@ss 10.0 27270101 eCl@ss 11.0 27270101 eCl@ss 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
