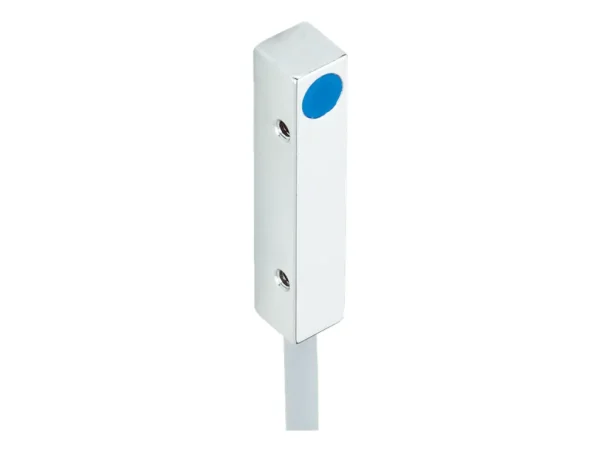

Home Endüktif Sensörler IQ05-0B8PS-ZUP – 6049725 🔍 IQ05-0B8PS-ZUP – 6049725 ✉ Teklif Al Teklif Al Stok kodu: 6049725 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 5 mm x 25 mm x 5 mm Sensing range Sn 0.8 mm Safe sensing range Sa 0.648 mm Installation type Flush Switching frequency 5,000 Hz Connection type Cable with connector M8, 3-pin, 0.2 m Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 10 ms Hysteresis 1 % … 10 % Reproducibility ≤ 1.5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Cable material PVC Conductor size 0.06 mm² Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Brass, chromium-plated Sensing face material Plastic, POM Safety-related parameters MTTFD 186 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.85 Aluminum (Al) Approx. 0.6 Copper (Cu) Approx. 0.6 Brass (Br) Approx. 0.7 Installation note Remark Associated graphic see “Installation” Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor, Limit Style Inductive Sensor, 40 mm, AC/DC, 20 mm Sensing Distance, 1 NOC & 3 NCC, AC Conduit Style – 871L-B20E40-T2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Proximity Sensor, 3-Wire DC Weld Field Immune, 18mm Diameter, Tubular: Teflon Coated Brass, 5mm Sensing Distance, Shielded, N.O., Source (PNP) Output, Micro QD (DC) – 871Z-DW5NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-D3NP12-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Sensor, Inductive, Limit Switch Style, High – Selectable Output, 60-132V AC, AC, 13 mm Sensing Range, Side Sensing, 2 Wire, 1/2 in.-14 NPT Conduit, Shielded – 802PR-LABB2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 5 mm x 25 mm x 5 mm Sensing range Sn 0.8 mm Safe sensing range Sa 0.648 mm Installation type Flush Switching frequency 5,000 Hz Connection type Cable with connector M8, 3-pin, 0.2 m Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 10 ms Hysteresis 1 % … 10 % Reproducibility ≤ 1.5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Cable material PVC Conductor size 0.06 mm² Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Brass, chromium-plated Sensing face material Plastic, POM Safety-related parameters MTTFD 186 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.85 Aluminum (Al) Approx. 0.6 Copper (Cu) Approx. 0.6 Brass (Br) Approx. 0.7 Installation note Remark Associated graphic see “Installation” Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
