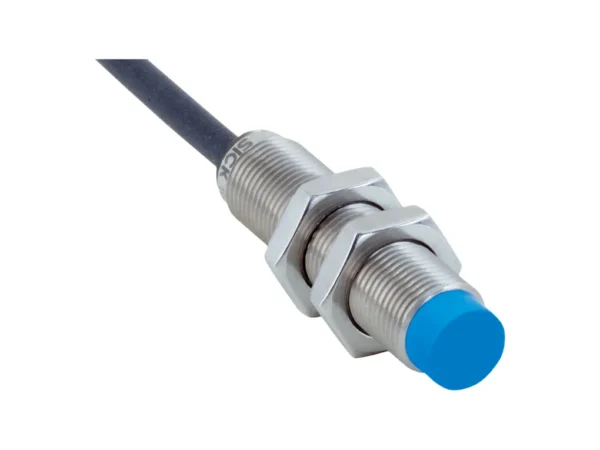

IMS12-08NPSNU2S – 1103183

IP68

IP69K

Emitted interference and interference immunity in accordance with Motor Insurance Directive ECE-R10 Rev. 5: E1-Type approval

Interference immunity in accordance with DIN ISO 11452-2: 100 V/m

AM vertical 20 MHz – 800 MHz; AM horizontal 200 MHz – 800 MHz; PM vertical/horizontal 800 MHz – 2.7 GHz

Conducted disturbances in accordance with ISO 7637-2 (pulse/severity/failure criterion 12 V/failure criterion 24 V): 1/IV/C/C, 2a/IV/A/A, 2b/IV/C/C, 3a/IV/A/A, 3b/IV/A/A, 4/IV/C/A, 5a/IV/B/B, 5b/IV/B/B

EN 61000-4-2 ESD: 4 kV CD / 8 kV AD

EN 61000-4-3 HF radiated: 10 V/m

EN 61000-4-4 burst: 2 kV

EN 61000-4-5 surge: 0,5 kV L-to-L, Ri: 2 Ohm

EN 61000-4-6 HF wire-bound: 10 V

Vibration resistance EN 60068-2-6 Fc: 25 g peak (10 Hz … 2,000 Hz) / –20 °C … +50 °C

Shock resistance EN 60068-2-27 Ea: 100 g 11 ms; 3 shocks in every direction of the 3 coordinate axes / –40 °C … +85 °C

Continuous shock resistance EN 60068-2-29 Eb: 40 g 3 ms rise, 7 ms fall / 5,000 shocks in every direction of the 3 coordinate axes / -20 °C … +50 °C

Broadband noise EN 60068-2-64: 15 g rms (5 Hz … 2,000 Hz) / 8 hours in every direction of the 3 coordinate axes / –40 °C … +85 °C
