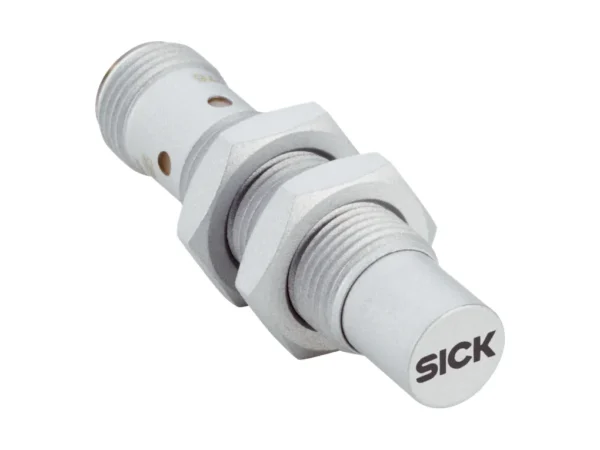

Home Endüktif Sensörler IMR12-10NPSTC0S – 6069276 🔍 IMR12-10NPSTC0S – 6069276 ✉ Teklif Al Teklif Al Stok kodu: 6069276 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M12 Diameter Ø 12 mm Sensing range Sn 10 mm Safe sensing range Sa 8.1 mm Installation type Non-flush Switching frequency 2,000 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 Special features Reduction factor 1, Weld immune, triple sensing range Special applications Welding range, Difficult application conditions Items supplied Mounting nut, brass, PTFE coating (2x) Washer, brass, PTFE coating, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 1.8 V Hysteresis 3 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ≤ ± 10 % ≤ ± 15 % Continuous current Ia ≤ 200 mA No load current ≤ 15 mA Off-state current ≤ 0.1 mA Short-circuit protection ✔ Reverse polarity protection ✔ Magnetic field strength ≤ 100 mT Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –30 °C … +85 °C Housing material PTFE coating, brass Sensing face material Plastic, PTFE coating Housing length 52 mm Thread length 26 mm Tightening torque, max. Typ. 7 Nm Protection class II UL File No. E191603 Safety-related parameters MTTFD 139 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Reduction factor Reduction factor 1 Stainless steel (V2A, 304) 1 Aluminum (Al) 1 Copper (Cu) 1 Brass (Br) 1 Installation note Remark Associated graphic see “Installation” A 12 mm B 36 mm C 12 mm D 30 mm E 10 mm F 60 mm G 45 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Sensor, Inductive, Limit Switch Style, High – Selectable Output, 60-132V AC, AC, 13 mm Sensing Range, Top Sensing, 2 Wire, Conduit Coupler, Shielded – 802PR-LACJ2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Metal Face, 30 mm Barrel Diameter, AC/DC, 10 mm Sensing Distance, AC Normally Open Contacts, 2 M 18 AWG ToughLink – 871TM-B10N30-H2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Sensor, Inductive, Limit Switch Style, High – Normally Open Output, 102-132V AC, AC, Hazardous Location, 13 mm Sensing Range, 2 Wire, Conduit, Shielded, Top – 802PR-LAAJ3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M12 Diameter Ø 12 mm Sensing range Sn 10 mm Safe sensing range Sa 8.1 mm Installation type Non-flush Switching frequency 2,000 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 Special features Reduction factor 1, Weld immune, triple sensing range Special applications Welding range, Difficult application conditions Items supplied Mounting nut, brass, PTFE coating (2x) Washer, brass, PTFE coating, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 1.8 V Hysteresis 3 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ≤ ± 10 % ≤ ± 15 % Continuous current Ia ≤ 200 mA No load current ≤ 15 mA Off-state current ≤ 0.1 mA Short-circuit protection ✔ Reverse polarity protection ✔ Magnetic field strength ≤ 100 mT Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –30 °C … +85 °C Housing material PTFE coating, brass Sensing face material Plastic, PTFE coating Housing length 52 mm Thread length 26 mm Tightening torque, max. Typ. 7 Nm Protection class II UL File No. E191603 Safety-related parameters MTTFD 139 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Reduction factor Reduction factor 1 Stainless steel (V2A, 304) 1 Aluminum (Al) 1 Copper (Cu) 1 Brass (Br) 1 Installation note Remark Associated graphic see “Installation” A 12 mm B 36 mm C 12 mm D 30 mm E 10 mm F 60 mm G 45 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
