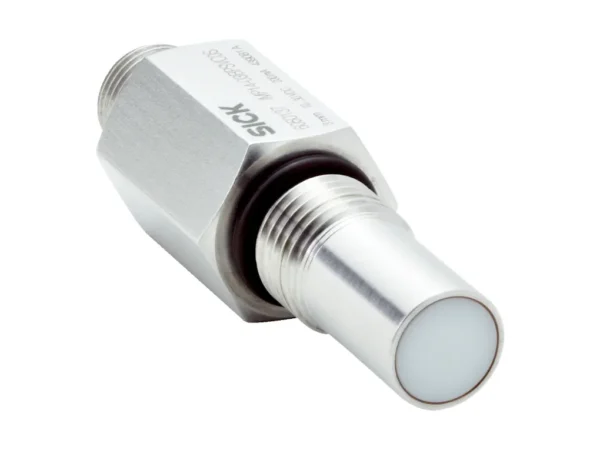

Home Endüktif Sensörler IMP14-03BNSVC0S – 6050139 🔍 IMP14-03BNSVC0S – 6050139 ✉ Teklif Al Teklif Al Stok kodu: 6050139 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M14 x 1.5 Diameter Ø 14 mm Pressure resistance ≤ 500 bar Sensing range Sn 3 mm Safe sensing range Sa 2.4 mm Installation type Flush Switching frequency 500 Hz Connection type Male connector M12, 4-pin Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 Special features High pressure resistant Special applications Hydraulic application Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 50 ms Hysteresis 1 % … 15 % Reproducibility ≤ 4 % Temperature drift (of Sr) 15 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Vacuum resistance 10-8 Torr Large sealing ring 11.5 mm x 2.0 mm Short-circuit protection ✔ Reverse polarity protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +80 °C Housing material Stainless steel V4A, DIN 1.4404 / AISI 316L Sensing face material Ceramics, ZrO2 Sealing ring material NBR Housing length 65 mm Thread length 11 mm Tightening torque, max. ≤ 70 Nm Safety-related parameters MTTFD 156 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.85 Aluminum (Al) Approx. 0 Copper (Cu) Approx. 0 Brass (Br) Approx. 0.15 Installation note Remark Associated graphic see “Installation” B 12 mm C 14 mm D 9 mm F 20 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Sensor, Inductive, Limit Switch Style, High – Selectable Output, 60-132V AC, AC, 13 mm Sensing Range, Side Sensing, 2 Wire, 1/2 in.-14 NPT Conduit, Shielded – 802PR-LABB2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 18 mm Barrel Inductive Prox Sensor – 872C-DH8NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Sensor, Inductive, Limit Switch Style, High – Normally Open Output, 102-132V AC, AC, Hazardous Location, 13 mm Sensing Range, 2 Wire, Conduit, Shielded, Side – 802PR-LAAA3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-D3NP12-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M14 x 1.5 Diameter Ø 14 mm Pressure resistance ≤ 500 bar Sensing range Sn 3 mm Safe sensing range Sa 2.4 mm Installation type Flush Switching frequency 500 Hz Connection type Male connector M12, 4-pin Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 Special features High pressure resistant Special applications Hydraulic application Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 50 ms Hysteresis 1 % … 15 % Reproducibility ≤ 4 % Temperature drift (of Sr) 15 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Vacuum resistance 10-8 Torr Large sealing ring 11.5 mm x 2.0 mm Short-circuit protection ✔ Reverse polarity protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +80 °C Housing material Stainless steel V4A, DIN 1.4404 / AISI 316L Sensing face material Ceramics, ZrO2 Sealing ring material NBR Housing length 65 mm Thread length 11 mm Tightening torque, max. ≤ 70 Nm Safety-related parameters MTTFD 156 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.85 Aluminum (Al) Approx. 0 Copper (Cu) Approx. 0 Brass (Br) Approx. 0.15 Installation note Remark Associated graphic see “Installation” B 12 mm C 14 mm D 9 mm F 20 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
