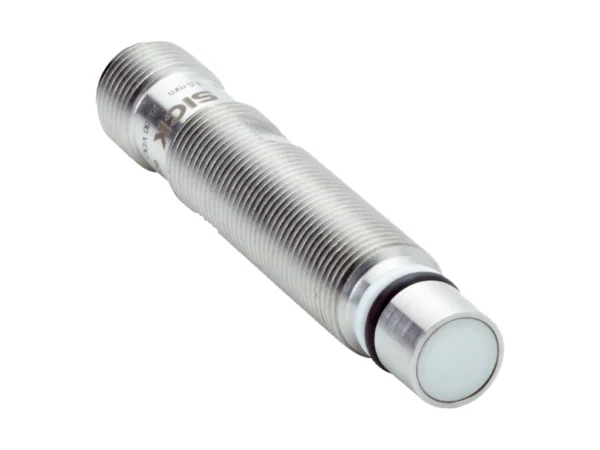

Name: SICK 6050114 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 6050114
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 20 %
Voltage drop	≤ 2 V
Time delay before availability	≤ 50 ms
Hysteresis	1 % … 15 %
Reproducibility	≤ 7 %
Temperature drift (of S_r)	≤ 15 %
EMC	According to EN 60947-5-2
Continuous current I_a	≤ 200 mA
Vacuum resistance	10^-8Torr
Large sealing ring	5.3 mm x 2.4 mm
Size support ring	10 mm x 5.9 mm x 1 mm
Short-circuit protection	✔
Reverse polarity protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature	–25 °C … +80 °C
Housing material	Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material	Ceramics, ZrO2
Sealing ring material	FPM
Housing length	56 mm
Thread length	28 mm
Tightening torque, max.	≤ 40 Nm

Safety-related parameters

Reduction factors

Note	The values are reference values which may vary
St37 steel (Fe)	1
Stainless steel (V2A, 304)	Approx. 0.75
Aluminum (Al)	Approx. 0.2
Copper (Cu)	Approx. 0.12
Brass (Br)	Approx. 0.34

Installation note

Remark	Associated graphic see “Installation”
B	8 mm
C	12 mm
D	6 mm
F	12 mm

Classifications

IMP12-1B5POVC0B – 6050114
