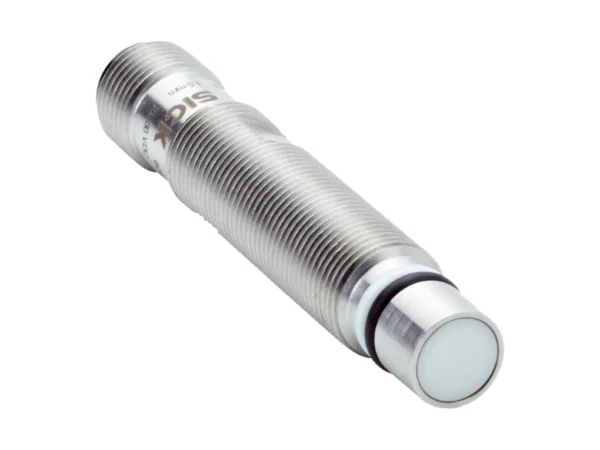

Home Endüktif Sensörler IMP12-1B5NPVC0B – 6050118 🔍 IMP12-1B5NPVC0B – 6050118 ✉ Teklif Al Teklif Al Stok kodu: 6050118 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M12 x 1 Diameter Ø 12 mm Pressure resistance ≤ 500 bar Sensing range Sn 1.5 mm Safe sensing range Sa 1.2 mm Installation type Flush Switching frequency 600 Hz Connection type Male connector M12, 4-pin Switching output NPN Output function Complementary Electrical wiring DC 4-wire Enclosure rating IP68 Special features High pressure resistant, Temperature resistance Special applications Hydraulic application Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 50 ms Hysteresis 1 % … 15 % Reproducibility ≤ 7 % Temperature drift (of Sr) ± 10 % ± 15 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Vacuum resistance 10-8 Torr Large sealing ring 5.3 mm x 2.4 mm Size support ring 10 mm x 5.9 mm x 1 mm Short-circuit protection ✔ Reverse polarity protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +100 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Ceramics, ZrO2 Sealing ring material FPM Housing length 56 mm Thread length 28 mm Tightening torque, max. ≤ 40 Nm Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.75 Aluminum (Al) Approx. 0.2 Copper (Cu) Approx. 0.12 Brass (Br) Approx. 0.34 Installation note Remark Associated graphic see “Installation” B 8 mm C 12 mm D 6 mm F 12 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor – 871L-B20E40-N3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Metal Face, Short Barrel, 18 mm Barrel Diameter, DC, 5 mm Sensing Distance, DC NOC Sourcing, Micro Quick Disconnect – 871TM-DH5NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-MM1NP7-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M12 x 1 Diameter Ø 12 mm Pressure resistance ≤ 500 bar Sensing range Sn 1.5 mm Safe sensing range Sa 1.2 mm Installation type Flush Switching frequency 600 Hz Connection type Male connector M12, 4-pin Switching output NPN Output function Complementary Electrical wiring DC 4-wire Enclosure rating IP68 Special features High pressure resistant, Temperature resistance Special applications Hydraulic application Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 50 ms Hysteresis 1 % … 15 % Reproducibility ≤ 7 % Temperature drift (of Sr) ± 10 % ± 15 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Vacuum resistance 10-8 Torr Large sealing ring 5.3 mm x 2.4 mm Size support ring 10 mm x 5.9 mm x 1 mm Short-circuit protection ✔ Reverse polarity protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +100 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Ceramics, ZrO2 Sealing ring material FPM Housing length 56 mm Thread length 28 mm Tightening torque, max. ≤ 40 Nm Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.75 Aluminum (Al) Approx. 0.2 Copper (Cu) Approx. 0.12 Brass (Br) Approx. 0.34 Installation note Remark Associated graphic see “Installation” B 8 mm C 12 mm D 6 mm F 12 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
