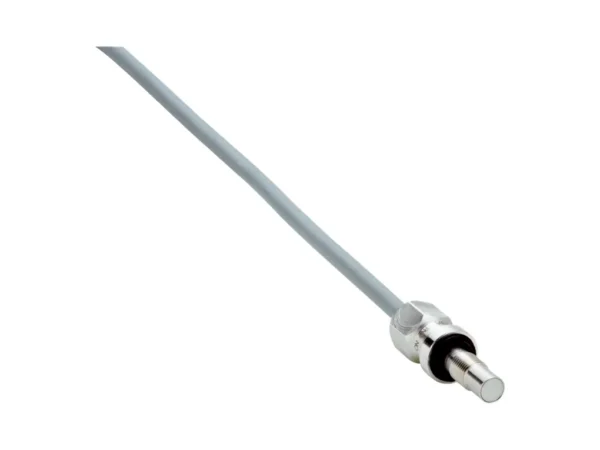

Home Endüktif Sensörler IMP05-01BPSVU2S – 6050109 🔍 IMP05-01BPSVU2S – 6050109 ✉ Teklif Al Teklif Al Stok kodu: 6050109 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M5 x 0.5 Diameter Ø 5 mm Pressure resistance ≤ 500 bar Sensing range Sn 1 mm Safe sensing range Sa 0.8 mm Installation type Flush Switching frequency 1,000 Hz Connection type Cable, 3-wire, 2 m Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 Special features High pressure resistant, Temperature resistance Special applications Hydraulic application Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 30 ms Hysteresis 1 % … 15 % Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % ± 15 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Vacuum resistance 10-8 Torr Size support ring 7.5 mm x 4.4 mm x 1 mm Cable material PUR Conductor size 0.14 mm² Cable diameter Ø 3.5 mm Short-circuit protection ✔ Reverse polarity protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +100 °C Housing material Phynox, DIN 2.4711 Sensing face material Ceramics, ZrO2 Material, supporting ring FPM Housing length 27 mm Thread length 5 mm Tightening torque, max. ≤ 5 Nm Safety-related parameters MTTFD 171 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) 0 Aluminum (Al) 0 Copper (Cu) 0 Brass (Br) 0 Installation note Remark Associated graphic see “Installation” B 5 mm C 5 mm D 3 mm F 8 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Endüstriyel bağlantı kablosu – 872C-D3NP12-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor – 872C-DX34-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Limit Style Inductive Sensor, 40 mm, AC/DC, 20 mm Sensing Distance, 1 NOC & 3 NCC, AC Conduit Style – 871L-B20E40-T2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M5 x 0.5 Diameter Ø 5 mm Pressure resistance ≤ 500 bar Sensing range Sn 1 mm Safe sensing range Sa 0.8 mm Installation type Flush Switching frequency 1,000 Hz Connection type Cable, 3-wire, 2 m Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 Special features High pressure resistant, Temperature resistance Special applications Hydraulic application Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 30 ms Hysteresis 1 % … 15 % Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % ± 15 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Vacuum resistance 10-8 Torr Size support ring 7.5 mm x 4.4 mm x 1 mm Cable material PUR Conductor size 0.14 mm² Cable diameter Ø 3.5 mm Short-circuit protection ✔ Reverse polarity protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +100 °C Housing material Phynox, DIN 2.4711 Sensing face material Ceramics, ZrO2 Material, supporting ring FPM Housing length 27 mm Thread length 5 mm Tightening torque, max. ≤ 5 Nm Safety-related parameters MTTFD 171 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) 0 Aluminum (Al) 0 Copper (Cu) 0 Brass (Br) 0 Installation note Remark Associated graphic see “Installation” B 5 mm C 5 mm D 3 mm F 8 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
