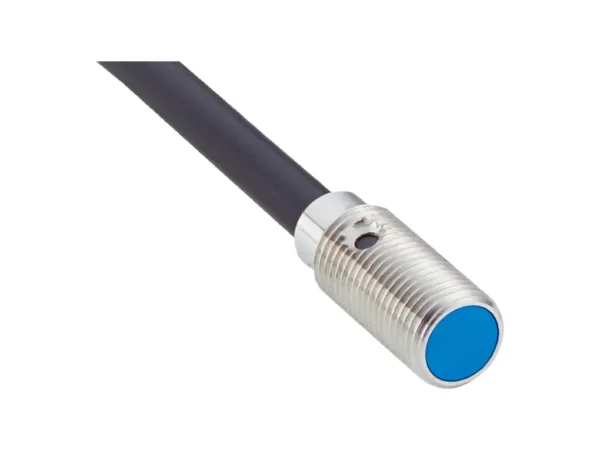

Home Endüktif Sensörler IMM05-1B5NSVU2K – 1105620 🔍 IMM05-1B5NSVU2K – 1105620 ✉ Teklif Al Teklif Al Stok kodu: 1105620 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Short-body Thread size M5 x 0.5 Diameter Ø 5 mm Sensing range Sn 1.5 mm Safe sensing range Sa 1.215 mm Installation type Flush Switching frequency 4,800 Hz Connection type Cable, 3-wire, 2 m Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Special features Visual adjustment indicator Items supplied Mounting nut, V2A stainless steel (2x) Washer, V2A stainless steel, with locking teeth (2x) Cable flag, Polymatic 50 (1 x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 10 ms Hysteresis 1 % … 15 % Reproducibility ≤ 2.5 % Temperature drift (of Sr) ≤ 10 % EMC EN 60947-5-2 Continuous current Ia ≤ 200 mA Cable material PUR Conductor size 0.14 mm² Cable diameter Ø 2.9 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 12 mm Thread length 10 mm Tightening torque, max. ≤ 1.5 Nm UL File No. NRKH.E348498 Safety-related parameters MTTFD 1,662 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.76 Aluminum (Al) Approx. 0.47 Copper (Cu) Approx. 0.4 Brass (Br) Approx. 0.54 Installation note Remark Associated graphic see “Installation” B 3 mm C 5 mm D 4.5 mm F 5 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 18 mm Barrel Inductive Prox Sensor – 872C-MH8NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor – 871L-B20E40-N3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 12 mm Barrel Inductive Prox Sensor – 872C-N8NP12-E5ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Short-body Thread size M5 x 0.5 Diameter Ø 5 mm Sensing range Sn 1.5 mm Safe sensing range Sa 1.215 mm Installation type Flush Switching frequency 4,800 Hz Connection type Cable, 3-wire, 2 m Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Special features Visual adjustment indicator Items supplied Mounting nut, V2A stainless steel (2x) Washer, V2A stainless steel, with locking teeth (2x) Cable flag, Polymatic 50 (1 x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 10 ms Hysteresis 1 % … 15 % Reproducibility ≤ 2.5 % Temperature drift (of Sr) ≤ 10 % EMC EN 60947-5-2 Continuous current Ia ≤ 200 mA Cable material PUR Conductor size 0.14 mm² Cable diameter Ø 2.9 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 12 mm Thread length 10 mm Tightening torque, max. ≤ 1.5 Nm UL File No. NRKH.E348498 Safety-related parameters MTTFD 1,662 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.76 Aluminum (Al) Approx. 0.47 Copper (Cu) Approx. 0.4 Brass (Br) Approx. 0.54 Installation note Remark Associated graphic see “Installation” B 3 mm C 5 mm D 4.5 mm F 5 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
