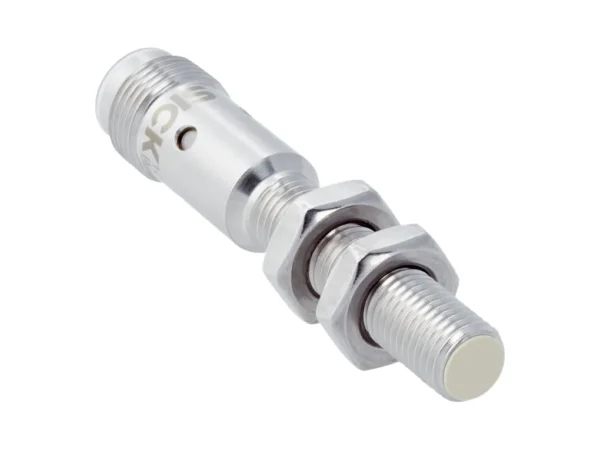

Home Endüktif Sensörler IMF08-02BPPNC0S – 1076748 🔍 IMF08-02BPPNC0S – 1076748 ✉ Teklif Al Teklif Al Stok kodu: 1076748 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M8 x 1 Diameter Ø 8 mm Sensing range Sn 2 mm Safe sensing range Sa 1.62 mm Installation type Flush Switching frequency 4,000 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function Complementary Electrical wiring DC 4-wire Enclosure rating IP68 IP69K Special features Resistant to cleaning agents, IO-Link, Temperature resistance Special applications Hygienic and washdown zones, Difficult application conditions Items supplied Mounting nut, V4A stainless steel (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Hysteresis 3 % … 20 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 100 g / 11 ms / 1000 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz, 1 mm / 55 Hz … 500 Hz / 15 g Ambient operating temperature –40 °C … +100 °C Housing material Stainless steel V4A, DIN 1.4404 / AISI 316L Sensing face material Plastic, LCP Housing length 60 mm Thread length 32 mm Tightening torque, max. Typ. 14 Nm Protection class III UL File No. E181493 Safety-related parameters MTTFD 1,687 years DCavg 0 % TM (mission time) 20 years Communication interface Communication interface IO-Link V1.0 Communication Interface detail COM2 (38,4 kBaud) Process data length 1 Byte Process data structure Bit 0 = Sr reached Bit 1 = Sa reached Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.74 Aluminum (Al) Approx. 0.43 Copper (Cu) Approx. 0.33 Brass (Br) Approx. 0.46 Installation note Remark Associated graphic see “Installation” B 6.5 mm C 8 mm D 6 mm F 16 mm Classifications eCl@ss 5.0 27270101 eCl@ss 5.1.4 27270101 eCl@ss 6.0 27270101 eCl@ss 6.2 27270101 eCl@ss 7.0 27270101 eCl@ss 8.0 27270101 eCl@ss 8.1 27270101 eCl@ss 9.0 27270101 eCl@ss 10.0 27270101 eCl@ss 11.0 27270101 eCl@ss 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Endüstriyel bağlantı kablosu – 872C-D3NP12-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor – 872C-DX34-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-MM1NP7-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Accessories, AC Micro Dual Key, Male (External Threads), Straight, 3-Pin, 6-8mm (0.24-0.31) PG9, Standard Materials, Standard – 871A-TS3-RM1ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M8 x 1 Diameter Ø 8 mm Sensing range Sn 2 mm Safe sensing range Sa 1.62 mm Installation type Flush Switching frequency 4,000 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function Complementary Electrical wiring DC 4-wire Enclosure rating IP68 IP69K Special features Resistant to cleaning agents, IO-Link, Temperature resistance Special applications Hygienic and washdown zones, Difficult application conditions Items supplied Mounting nut, V4A stainless steel (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Hysteresis 3 % … 20 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 100 g / 11 ms / 1000 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz, 1 mm / 55 Hz … 500 Hz / 15 g Ambient operating temperature –40 °C … +100 °C Housing material Stainless steel V4A, DIN 1.4404 / AISI 316L Sensing face material Plastic, LCP Housing length 60 mm Thread length 32 mm Tightening torque, max. Typ. 14 Nm Protection class III UL File No. E181493 Safety-related parameters MTTFD 1,687 years DCavg 0 % TM (mission time) 20 years Communication interface Communication interface IO-Link V1.0 Communication Interface detail COM2 (38,4 kBaud) Process data length 1 Byte Process data structure Bit 0 = Sr reached Bit 1 = Sa reached Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.74 Aluminum (Al) Approx. 0.43 Copper (Cu) Approx. 0.33 Brass (Br) Approx. 0.46 Installation note Remark Associated graphic see “Installation” B 6.5 mm C 8 mm D 6 mm F 16 mm Classifications eCl@ss 5.0 27270101 eCl@ss 5.1.4 27270101 eCl@ss 6.0 27270101 eCl@ss 6.2 27270101 eCl@ss 7.0 27270101 eCl@ss 8.0 27270101 eCl@ss 8.1 27270101 eCl@ss 9.0 27270101 eCl@ss 10.0 27270101 eCl@ss 11.0 27270101 eCl@ss 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
