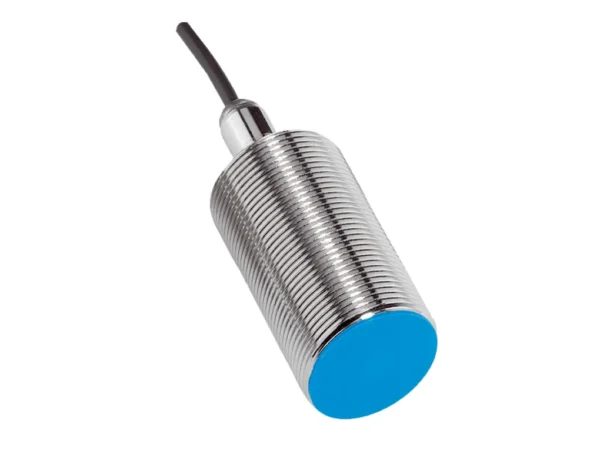

Home Endüktif Sensörler IME30-15BPPZUDSS28 – 1073996 🔍 IME30-15BPPZUDSS28 – 1073996 ✉ Teklif Al Teklif Al Stok kodu: 1073996 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M30 x 1.5 Diameter Ø 30 mm Sensing range Sn 15 mm Installation type Flush Switching frequency 500 Hz Connection type Cable, 4-wire, 15 m Switching output PNP Output function Complementary Electrical wiring DC 4-wire Enclosure rating IP67 Special characteristic Packaged in zip bag Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Time delay before availability ≤ 125 ms Hysteresis 3 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Cable material PUR Conductor size 0.25 mm² Cable diameter Ø 3.9 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 70 mm Thread length 54 mm Tightening torque, max. ≤ 100 Nm UL File No. NRKH.E181493 Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.45 Copper (Cu) Approx. 0.4 Brass (Br) Approx. 0.4 Installation note Remark Associated graphic see “Installation” B 60 mm C 30 mm D 45 mm F 120 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Sensor, Inductive, Limit Switch Style, High – Normally Open Output, 102-132V AC, AC, Hazardous Location, 13 mm Sensing Range, 2 Wire, Conduit, Shielded, Side – 802PR-LAAA3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Metal Face, 30 mm Barrel Diameter, AC/DC, 10 mm Sensing Distance, AC Normally Open Contacts, 2 M 18 AWG ToughLink – 871TM-B10N30-H2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 12 mm Barrel Inductive Prox Sensor – 872C-N8NP12-E5ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Sensor, Inductive, Limit Switch Style, High – Selectable Output, 60-132V AC, AC, 13 mm Sensing Range, Side Sensing, 2 Wire, 1/2 in.-14 NPT Conduit, Shielded – 802PR-LABB2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M30 x 1.5 Diameter Ø 30 mm Sensing range Sn 15 mm Installation type Flush Switching frequency 500 Hz Connection type Cable, 4-wire, 15 m Switching output PNP Output function Complementary Electrical wiring DC 4-wire Enclosure rating IP67 Special characteristic Packaged in zip bag Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Time delay before availability ≤ 125 ms Hysteresis 3 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Cable material PUR Conductor size 0.25 mm² Cable diameter Ø 3.9 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 70 mm Thread length 54 mm Tightening torque, max. ≤ 100 Nm UL File No. NRKH.E181493 Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.45 Copper (Cu) Approx. 0.4 Brass (Br) Approx. 0.4 Installation note Remark Associated graphic see “Installation” B 60 mm C 30 mm D 45 mm F 120 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
