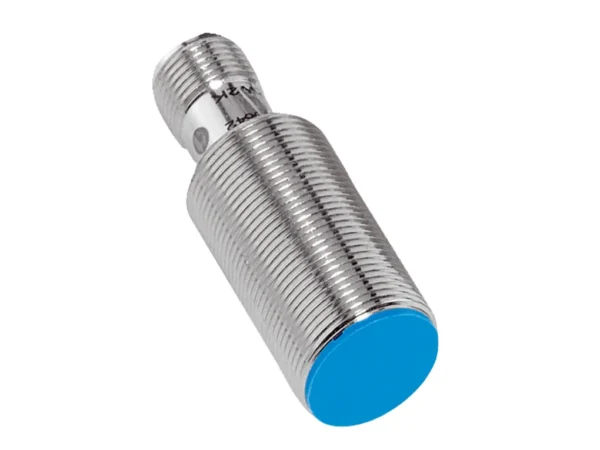

Name: SICK 1071252 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1071252
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Housing	Cylindrical thread design
Housing	Short-body
Thread size	M18 x 1
Diameter	Ø 18 mm
Sensing range S_n	12 mm
Safe sensing range S_a	9.72 mm
Installation type	Quasi-flush
Switching frequency	500 Hz
Connection type	Male connector M12, 4-pin
Switching output	PNP
Output function	NO
Electrical wiring	DC 3-wire
Enclosure rating	IP67
Special features	Triple sensing range
Items supplied	Mounting nut, brass, nickel-plated (2x)

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2 V
Time delay before availability	≤ 50 ms
Hysteresis	1 % … 15 %
Reproducibility	≤ 5 %
Temperature drift (of S_r)	± 10 %
EMC	According to EN 60947-5-2
Continuous current I_a	≤ 200 mA
No load current	≤ 10 mA
Short-circuit protection	✔
Reverse polarity protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	30 g, 11 ms/10 Hz … 55 Hz, 1 mm
Ambient operating temperature	–25 °C … +75 °C
Ambient temperature, storage	–25 °C … +75 °C
Housing material	Brass, nickel-plated
Sensing face material	Plastic, PA 66
Housing length	50 mm
Thread length	33 mm
Tightening torque, max.	≤ 30 Nm
UL File No.	NRKH.E181493

Safety-related parameters

MTTF_D	1,735 years
DC_avg	0 %

Reduction factors

Note	The values are reference values which may vary
St37 steel (Fe)	1
Stainless steel (V2A, 304)	Approx. 0.78
Aluminum (Al)	Approx. 0.43
Copper (Cu)	Approx. 0.35
Brass (Br)	Approx. 0.47

Installation note

Remark	Associated graphic see “Installation”
A	13.5 mm
B	35 mm
C	18 mm
D	36 mm
E	4 mm
F	120 mm
