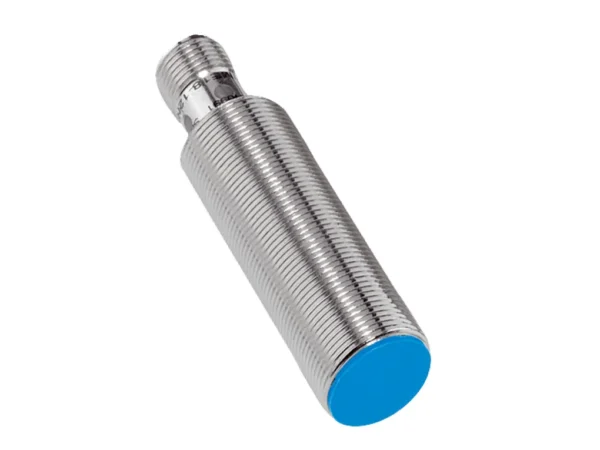

Home Endüktif Sensörler IME18-12BNSZC0S – 1071262 🔍 IME18-12BNSZC0S – 1071262 ✉ Teklif Al Teklif Al Stok kodu: 1071262 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 12 mm Safe sensing range Sa 9.72 mm Installation type Quasi-flush Switching frequency 500 Hz Connection type Male connector M12, 4-pin Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Special features Triple sensing range Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Time delay before availability ≤ 50 ms Hysteresis 1 % … 15 % Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Ambient temperature, storage –25 °C … +75 °C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 69 mm Thread length 52 mm Tightening torque, max. ≤ 30 Nm UL File No. NRKH.E181493 Safety-related parameters MTTFD 1,735 years DCavg 0 % Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.78 Aluminum (Al) Approx. 0.43 Copper (Cu) Approx. 0.35 Brass (Br) Approx. 0.47 Installation note Remark Associated graphic see “Installation” A 13.5 mm B 35 mm C 18 mm D 36 mm E 4 mm F 120 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Endüstriyel bağlantı kablosu – 872C-D3NP12-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, PTFE Coated, WFI, 12 mm Barrel Diameter, DC, 2 mm Sensing Distance, Normally Open Sourcing, Micro Quick Disconnect – 871Z-DW2NP12-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor – 871L-B20E40-N3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 12 mm Safe sensing range Sa 9.72 mm Installation type Quasi-flush Switching frequency 500 Hz Connection type Male connector M12, 4-pin Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Special features Triple sensing range Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Time delay before availability ≤ 50 ms Hysteresis 1 % … 15 % Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Ambient temperature, storage –25 °C … +75 °C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 69 mm Thread length 52 mm Tightening torque, max. ≤ 30 Nm UL File No. NRKH.E181493 Safety-related parameters MTTFD 1,735 years DCavg 0 % Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.78 Aluminum (Al) Approx. 0.43 Copper (Cu) Approx. 0.35 Brass (Br) Approx. 0.47 Installation note Remark Associated graphic see “Installation” A 13.5 mm B 35 mm C 18 mm D 36 mm E 4 mm F 120 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
