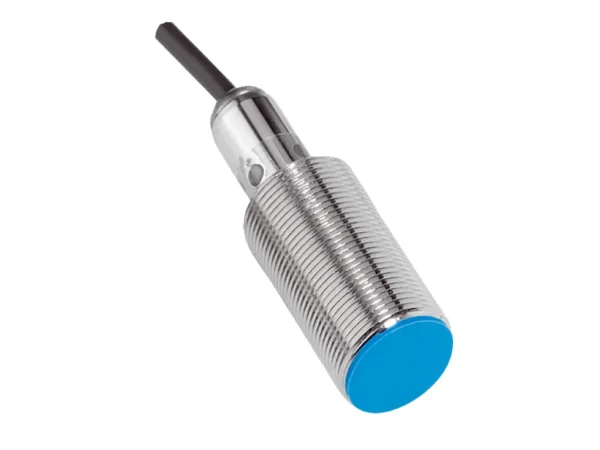

Home Endüktif Sensörler IME18-08BDSZY2K – 1072277 🔍 IME18-08BDSZY2K – 1072277 ✉ Teklif Al Teklif Al Stok kodu: 1072277 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Short-body Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 8 mm Safe sensing range Sa 6.48 mm Installation type Flush Switching frequency 1,000 Hz Connection type Cable, 2-wire, 2 m, Oil-resistant Output function NO Electrical wiring DC 2-wire Enclosure rating IP67 Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 4 V ≤ 4.5 V Time delay before availability ≤ 100 ms Hysteresis 5 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 100 mA Off-state current ≤ 0.8 mA Minimum load current ≥ 3 mA Cable material PVC Conductor size 0.25 mm² Cable diameter Ø 3.9 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse ≤ 5 ms Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 48 mm Thread length 33 mm Tightening torque, max. ≤ 40 Nm UL File No. NRKH.E181493 Safety-related parameters MTTFD 1,103 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.45 Copper (Cu) Approx. 0.4 Brass (Br) Approx. 0.4 Installation note Remark Associated graphic see “Installation” B 36 mm C 18 mm D 24 mm F 64 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler 18 mm Barrel Inductive Prox Sensor – 872C-DH8NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Metal Face, 18 mm Barrel Diameter, AC/DC, 8 mm Sensing Distance, AC Normally Open Contacts, 2 M 18 AWG ToughLink – 871TM-B8N18-H2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Sensor, Inductive, Limit Switch Style, High – Selectable Output, 60-132V AC, AC, 13 mm Sensing Range, Side Sensing, 2 Wire, 1/2 in.-14 NPT Conduit, Shielded – 802PR-LABB2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Metal Face, 30 mm Barrel Diameter, AC/DC, 10 mm Sensing Distance, AC Normally Open Contacts, 2 M 18 AWG ToughLink – 871TM-B10N30-H2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Short-body Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 8 mm Safe sensing range Sa 6.48 mm Installation type Flush Switching frequency 1,000 Hz Connection type Cable, 2-wire, 2 m, Oil-resistant Output function NO Electrical wiring DC 2-wire Enclosure rating IP67 Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 4 V ≤ 4.5 V Time delay before availability ≤ 100 ms Hysteresis 5 % … 15 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 100 mA Off-state current ≤ 0.8 mA Minimum load current ≥ 3 mA Cable material PVC Conductor size 0.25 mm² Cable diameter Ø 3.9 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse ≤ 5 ms Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 48 mm Thread length 33 mm Tightening torque, max. ≤ 40 Nm UL File No. NRKH.E181493 Safety-related parameters MTTFD 1,103 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.45 Copper (Cu) Approx. 0.4 Brass (Br) Approx. 0.4 Installation note Remark Associated graphic see “Installation” B 36 mm C 18 mm D 24 mm F 64 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
