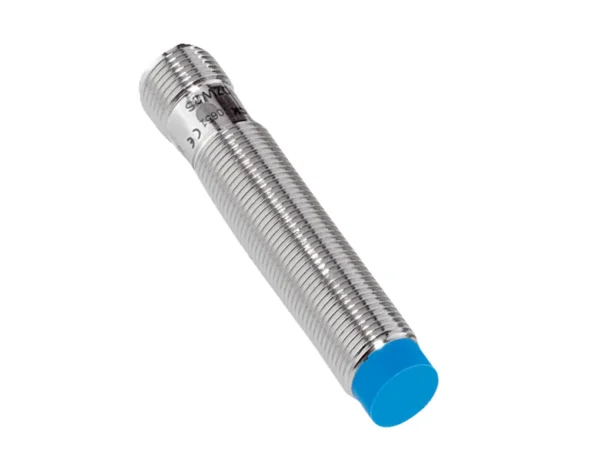

Home Endüktif Sensörler IME12-10NNOZC0S – 1071245 🔍 IME12-10NNOZC0S – 1071245 ✉ Teklif Al Teklif Al Stok kodu: 1071245 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 10 mm Safe sensing range Sa 8.1 mm Installation type Non-flush Switching frequency 400 Hz Connection type Male connector M12, 4-pin Switching output NPN Output function NC Electrical wiring DC 3-wire Enclosure rating IP67 Special features Triple sensing range Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Time delay before availability ≤ 50 ms Hysteresis 1 % … 15 % Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Ambient temperature, storage –25 °C … +75 °C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 65 mm Thread length 43 mm Tightening torque, max. ≤ 12 Nm UL File No. NRKH.E181493 Safety-related parameters MTTFD 1,735 years DCavg 0 % Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.68 Aluminum (Al) Approx. 0.47 Copper (Cu) Approx. 0.42 Brass (Br) Approx. 0.5 Installation note Remark Associated graphic see “Installation” A 15 mm B 45 mm C 12 mm D 30 mm E 13 mm F 100 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Endüstriyel bağlantı kablosu – 872C-MM1NP7-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Metal Face, 18 mm Barrel Diameter, AC/DC, 8 mm Sensing Distance, AC Normally Open Contacts, 2 M 18 AWG ToughLink – 871TM-B8N18-H2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 12 mm Barrel Inductive Prox Sensor – 872C-N8NP12-E5ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 18 mm Barrel Inductive Prox Sensor – 872C-MH8NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 10 mm Safe sensing range Sa 8.1 mm Installation type Non-flush Switching frequency 400 Hz Connection type Male connector M12, 4-pin Switching output NPN Output function NC Electrical wiring DC 3-wire Enclosure rating IP67 Special features Triple sensing range Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Time delay before availability ≤ 50 ms Hysteresis 1 % … 15 % Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Ambient temperature, storage –25 °C … +75 °C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 65 mm Thread length 43 mm Tightening torque, max. ≤ 12 Nm UL File No. NRKH.E181493 Safety-related parameters MTTFD 1,735 years DCavg 0 % Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.68 Aluminum (Al) Approx. 0.47 Copper (Cu) Approx. 0.42 Brass (Br) Approx. 0.5 Installation note Remark Associated graphic see “Installation” A 15 mm B 45 mm C 12 mm D 30 mm E 13 mm F 100 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
