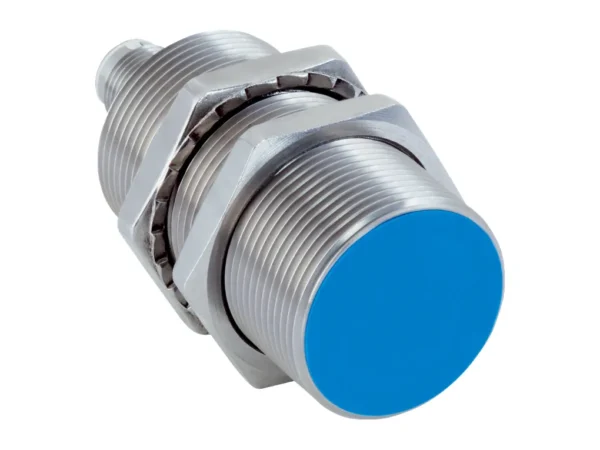

Home Endüktif Sensörler IMC30-15BPPVC0SA70 – 1079299 🔍 IMC30-15BPPVC0SA70 – 1079299 ✉ Teklif Al Teklif Al Stok kodu: 1079299 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M30 x 1.5 Diameter Ø 30 mm Sensing range Sn 0 mm … 15 mm Safe sensing range Sa 12.15 mm Number of switching points Up to 4 adjustable switching points or windows Switching modes Single point, Window mode, Two point mode, Visual adjustment indicator Switching frequency Qint.1 / Qint.2 on Pin2 200 Hz Installation type Flush Connection type Male connector M12, 4-pin Switching output PNP Output Q/C Switching output or IO-Link mode Output MFC Switching output or input Output function NC / NO Output characteristic Programmable Electrical wiring DC 4-wire Enclosure rating IP68 IP69K Special features Smart Task, Resistant against coolant lubricants, IO-Link Special applications Zones with coolants and lubricants, Difficult application conditions Special characteristic Resistant against coolant lubricants Pin 2 configuration External input, Teach-in, switching signal Items supplied Mounting nut, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Hysteresis Programmable Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g Ambient operating temperature –40 °C … +75 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 70 mm Thread length 52 mm Tightening torque, max. Typ. 100 Nm UL File No. E181493 Teach-in accuracy +/- 3% of Sr Resolution, typical (range) 25 μm (0 mm … 6 mm) 75 μm (6 mm … 10 mm) 300 μm (10 mm … 15 mm) Resolution, maximum (area) 50 μm (0 mm … 6 mm) 150 μm (6 mm … 10 mm) 500 μm (10 mm … 15 mm) Safety-related parameters MTTFD 688 years DCavg 0 % TM (mission time) 20 years Communication interface Communication interface IO-Link V1.1 Communication Interface detail COM2 (38,4 kBaud) Cycle time 5 ms Process data length 32 Bit Process data structure Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = switching signal QInt3 Bit 3 = switching signal QInt4 Bit 18 … 31 = time value Factory setting Switching Point 1: reference value 1 Output: normally open Pin 2 configuration: input Reference values Note Reference value in Digits for switching point in mm stored in the sensor Reference value 1 14 mm Reference value 2 10 mm Reference value 3 6 mm Reference value 4 2 mm Reduction factors Stainless steel (V2A, 304) Approx. 0.6 Aluminum (Al) Approx. 0.2 Copper (Cu) Approx. 0.2 Brass (Br) Approx. 0.2 Installation note Remark Associated graphic see “Installation” B 40 mm C 30 mm D 45 mm F 120 mm Smart Task Smart Task name Time measurement + debouncing Logic function Window Direct Timer function Deactivated On delay Off delay ON and OFF delay Impulse (one shot) Inverter Adjustable Time measurement accuracy SIO Logic: (-1,2 … 0) x time base ± 1 % of time measurement value IOL: (-1,2 … 0) x time base ± 1 % of time measurement value Time measurement accuracy (e.g. accuracy for time measurement value = 1 s ) Time base 1 ms: –11,2 ms … 10 ms Resolution time measuring value 3 ms Debounce time max. SIO Logic: 30 s IOL: 30 s Switching signal Switching signal QL1 Output type (dependant on the adjusted threshold) Switching signal QL2 Output type (dependant on the adjusted threshold) Measuring value Time measurement value Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor, Metal Face, Short Barrel, 30 mm Barrel Diameter, DC, 10 mm Sensing Distance, DC NOC Sourcing, Micro Quick Disconnect – 871TM-DH10NP30-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-D3NP12-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor – 871L-B20E40-N3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-MM1NP7-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M30 x 1.5 Diameter Ø 30 mm Sensing range Sn 0 mm … 15 mm Safe sensing range Sa 12.15 mm Number of switching points Up to 4 adjustable switching points or windows Switching modes Single point, Window mode, Two point mode, Visual adjustment indicator Switching frequency Qint.1 / Qint.2 on Pin2 200 Hz Installation type Flush Connection type Male connector M12, 4-pin Switching output PNP Output Q/C Switching output or IO-Link mode Output MFC Switching output or input Output function NC / NO Output characteristic Programmable Electrical wiring DC 4-wire Enclosure rating IP68 IP69K Special features Smart Task, Resistant against coolant lubricants, IO-Link Special applications Zones with coolants and lubricants, Difficult application conditions Special characteristic Resistant against coolant lubricants Pin 2 configuration External input, Teach-in, switching signal Items supplied Mounting nut, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Hysteresis Programmable Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g Ambient operating temperature –40 °C … +75 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 70 mm Thread length 52 mm Tightening torque, max. Typ. 100 Nm UL File No. E181493 Teach-in accuracy +/- 3% of Sr Resolution, typical (range) 25 μm (0 mm … 6 mm) 75 μm (6 mm … 10 mm) 300 μm (10 mm … 15 mm) Resolution, maximum (area) 50 μm (0 mm … 6 mm) 150 μm (6 mm … 10 mm) 500 μm (10 mm … 15 mm) Safety-related parameters MTTFD 688 years DCavg 0 % TM (mission time) 20 years Communication interface Communication interface IO-Link V1.1 Communication Interface detail COM2 (38,4 kBaud) Cycle time 5 ms Process data length 32 Bit Process data structure Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = switching signal QInt3 Bit 3 = switching signal QInt4 Bit 18 … 31 = time value Factory setting Switching Point 1: reference value 1 Output: normally open Pin 2 configuration: input Reference values Note Reference value in Digits for switching point in mm stored in the sensor Reference value 1 14 mm Reference value 2 10 mm Reference value 3 6 mm Reference value 4 2 mm Reduction factors Stainless steel (V2A, 304) Approx. 0.6 Aluminum (Al) Approx. 0.2 Copper (Cu) Approx. 0.2 Brass (Br) Approx. 0.2 Installation note Remark Associated graphic see “Installation” B 40 mm C 30 mm D 45 mm F 120 mm Smart Task Smart Task name Time measurement + debouncing Logic function Window Direct Timer function Deactivated On delay Off delay ON and OFF delay Impulse (one shot) Inverter Adjustable Time measurement accuracy SIO Logic: (-1,2 … 0) x time base ± 1 % of time measurement value IOL: (-1,2 … 0) x time base ± 1 % of time measurement value Time measurement accuracy (e.g. accuracy for time measurement value = 1 s ) Time base 1 ms: –11,2 ms … 10 ms Resolution time measuring value 3 ms Debounce time max. SIO Logic: 30 s IOL: 30 s Switching signal Switching signal QL1 Output type (dependant on the adjusted threshold) Switching signal QL2 Output type (dependant on the adjusted threshold) Measuring value Time measurement value Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
