Name: SICK 1079298 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1079298
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Housing	Cylindrical thread design
Thread size	M30 x 1.5
Diameter	Ø 30 mm
Sensing range S_n	0 mm … 15 mm
Safe sensing range S_a	12.15 mm
Number of switching points	Up to 4 adjustable switching points or windows
Switching modes	Single point, Window mode, Two point mode, Visual adjustment indicator
Switching frequency Qint.1 / Qint.2 on Pin2	200 Hz
Installation type	Flush
Connection type	Male connector M12, 4-pin
Switching output	PNP
Output Q/C	Switching output or IO-Link mode
Output MFC	Switching output or input
Output function	NC / NO
Output characteristic	Programmable
Electrical wiring	DC 4-wire
Enclosure rating	IP68 IP69K
Special features	Smart Task, Resistant against coolant lubricants, IO-Link
Special applications	Zones with coolants and lubricants, Difficult application conditions
Special characteristic	Resistant against coolant lubricants
Pin 2 configuration	External input, Teach-in, switching signal
Items supplied	Mounting nut, V2A stainless steel, with locking teeth (2x)

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2 V
Hysteresis	Programmable
Reproducibility	≤ 5 %
Temperature drift (of S_r)	± 10 %
EMC	According to EN 60947-5-2
Continuous current I_a	≤ 200 mA
Short-circuit protection	✔
Reverse polarity protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g
Ambient operating temperature	–40 °C … +75 °C
Housing material	Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material	Plastic, LCP
Housing length	70 mm
Thread length	52 mm
Tightening torque, max.	Typ. 100 Nm
UL File No.	E181493
Teach-in accuracy	+/- 3% of Sr
Resolution, typical (range)	25 μm (0 mm … 6 mm) 75 μm (6 mm … 10 mm) 300 μm (10 mm … 15 mm)
Resolution, maximum (area)	50 μm (0 mm … 6 mm) 150 μm (6 mm … 10 mm) 500 μm (10 mm … 15 mm)

Safety-related parameters

Communication interface

Communication interface	IO-Link V1.1
Communication Interface detail	COM2 (38,4 kBaud)
Cycle time	5 ms
Process data length	32 Bit
Process data structure	Bit 0 = switching signal Q_L1 Bit 1 = switching signal Q_L2 Bit 2 = switching signal Q_Int3 Bit 3 = switching signal Q_Int4 Bit 16 … 31 = distance value
Factory setting	Switching Point 1: reference value 1 Output: normally open Pin 2 configuration: input

Reference values

Note	Reference value in Digits for switching point in mm stored in the sensor
Reference value 1	14 mm
Reference value 2	10 mm
Reference value 3	6 mm
Reference value 4	2 mm

Reduction factors

Installation note

Remark	Associated graphic see “Installation”
B	40 mm
C	30 mm
D	45 mm
F	120 mm

Smart Task

Smart Task name

Base logics

Logic function

AND

XOR

Hysteresis

Timer function

On delay

Off delay

ON and OFF delay

Impulse (one shot)

Inverter

Adjustable

Switching frequency

SIO Direct: 200 Hz, SIO Logic: 200 Hz, IOL: 200 Hz

Classifications

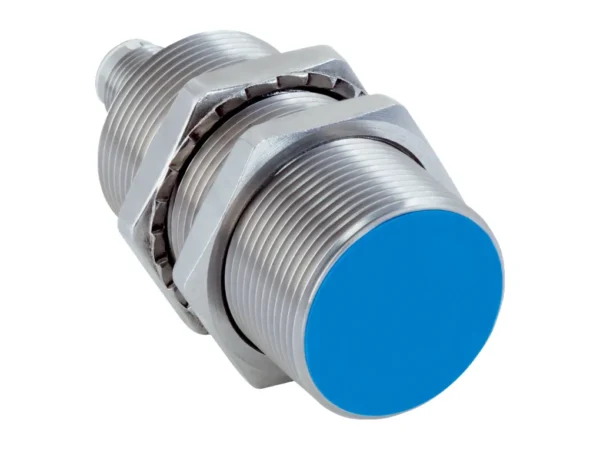

IMC30-15BPPVC0SA00 – 1079298
