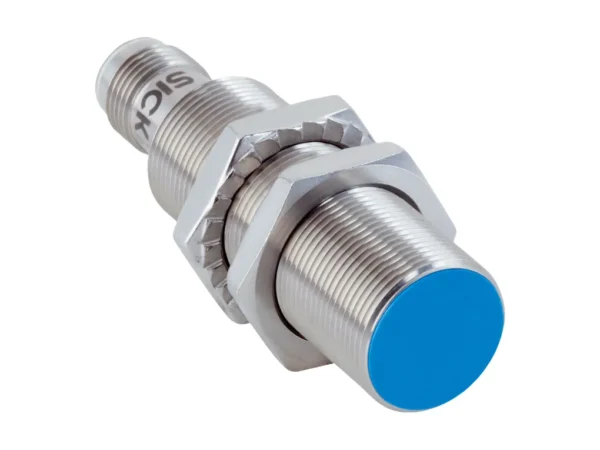

IMC18-08BPPVC0SA00 – 1079292

IP68

IP69K

≤ 5 %

25 μm (0 mm … 5 mm)

150 μm (5 mm … 8 mm)

50 μm (0 mm … 5 mm)

300 μm (5 mm … 8 mm)

Bit 0 = switching signal Q_L1

Bit 1 = switching signal Q_L2

Bit 2 = switching signal Q_Int3

Bit 3 = switching signal Q_Int4

Bit 16 … 31 = distance value

Switching Point 1: reference value 1

Output: normally open

Pin 2 configuration: input

AND

OR

XOR

Hysteresis

On delay

Off delay

ON and OFF delay

Impulse (one shot)
