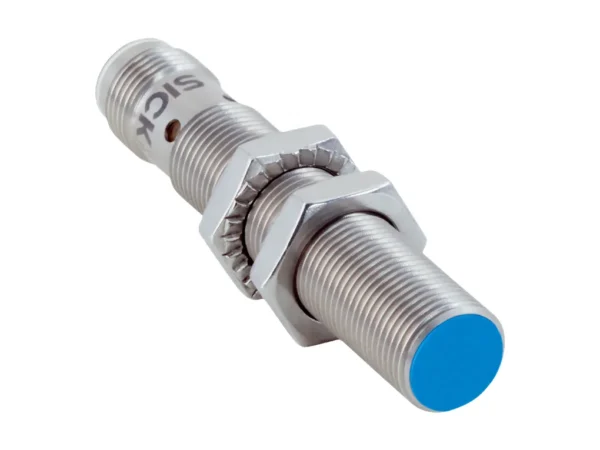

Name: SICK 1079288 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1079288
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Housing	Cylindrical thread design
Thread size	M12 x 1
Diameter	Ø 12 mm
Sensing range S_n	0 mm … 4 mm
Safe sensing range S_a	3.24 mm
Number of switching points	Up to 4 adjustable switching points or windows
Switching modes	Single point, Window mode, Two point mode, Visual adjustment indicator
Switching frequency Qint.1 / Qint.2 on Pin2	1,000 Hz
Installation type	Flush
Connection type	Male connector M12, 4-pin
Switching output	PNP
Output Q/C	Switching output or IO-Link mode
Output MFC	Switching output or input
Output function	NC / NO
Output characteristic	Programmable
Electrical wiring	DC 4-wire
Enclosure rating	IP68 IP69K
Special features	Smart Task, Resistant against coolant lubricants, IO-Link
Special applications	Zones with coolants and lubricants, Difficult application conditions
Special characteristic	Resistant against coolant lubricants
Pin 2 configuration	External input, Teach-in, switching signal
Items supplied	Mounting nut, V2A stainless steel, with locking teeth (2x)

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2 V
Hysteresis	Programmable
Reproducibility	≤ 5 %
Temperature drift (of S_r)	± 10 %
EMC	According to EN 60947-5-2
Continuous current I_a	≤ 200 mA
Short-circuit protection	✔
Reverse polarity protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g
Ambient operating temperature	–40 °C … +75 °C
Housing material	Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material	Plastic, LCP
Housing length	65 mm
Thread length	48 mm
Tightening torque, max.	Typ. 32 Nm
UL File No.	E181493
Teach-in accuracy	+/- 3% of Sr
Resolution, typical (range)	10 μm (0 mm … 1 mm) 20 μm (1 mm … 3 mm) 40 μm (3 mm … 4 mm)
Resolution, maximum (area)	20 μm (0 mm … 1 mm) 40 μm (1 mm … 3 mm) 75 μm (3 mm … 4 mm)

Safety-related parameters

Communication interface

Communication interface	IO-Link V1.1
Communication Interface detail	COM2 (38,4 kBaud)
Cycle time	5 ms
Process data length	32 Bit
Process data structure	Bit 0 = switching signal Q_L1 Bit 1 = switching signal Q_L2 Bit 2 = switching signal Q_Int3 Bit 3 = switching signal Q_Int4 Bit 18 … 31 = counting value
Factory setting	Switching Point 1: reference value 1 Output: normally open Pin 2 configuration: input

Reference values

Note	Reference value in Digits for switching point in mm stored in the sensor
Reference value 1	4 mm
Reference value 2	3 mm
Reference value 3	2 mm
Reference value 4	1 mm

Reduction factors

Installation note

Remark	Associated graphic see “Installation”
B	12 mm
C	12 mm
D	12 mm
F	32 mm

Smart Task

Smart Task name

Counter + debouncing

Logic function

Window

Hysteresis

Direct

Timer function

Deactivated

On delay

Off delay

ON and OFF delay

Impulse (one shot)

Inverter

Adjustable

Maximum counting frequency

SIO Logic: 1000 Hz

IOL: 1000 Hz

Counter reset

SIO Logic: 500 µs

IOL: —

Debounce time max.

SIO Logic: 30 s

IOL: 30 s

Switching signal
Switching signal Q_L1	Output type (dependant on the adjusted threshold)
Switching signal Q_L2	Output type (dependant on the adjusted threshold)

Measuring value

Counting value
