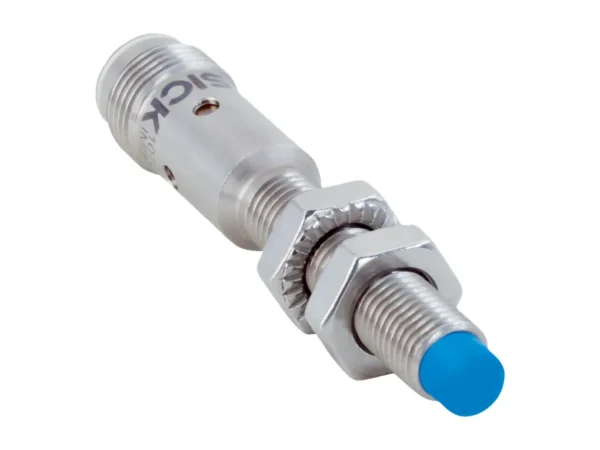

Home Endüktif Sensörler IMC08-04NPPVC0SA00 – 1079283 🔍 IMC08-04NPPVC0SA00 – 1079283 ✉ Teklif Al Teklif Al Stok kodu: 1079283 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M8 x 1 Diameter Ø 8 mm Sensing range Sn 0 mm … 4 mm Safe sensing range Sa 3.24 mm Number of switching points Up to 4 adjustable switching points or windows Switching modes Single point, Window mode, Two point mode, Visual adjustment indicator Switching frequency Qint.1 / Qint.2 on Pin2 1,000 Hz Installation type Non-flush Connection type Male connector M12, 4-pin Switching output PNP Output Q/C Switching output or IO-Link mode Output MFC Switching output or input Output function NC / NO Output characteristic Programmable Electrical wiring DC 4-wire Enclosure rating IP68 IP69K Special features Smart Task, Resistant against coolant lubricants, IO-Link Special applications Zones with coolants and lubricants, Difficult application conditions Special characteristic Resistant against coolant lubricants Pin 2 configuration External input, Teach-in, switching signal Items supplied Mounting nut, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Hysteresis Programmable Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g Ambient operating temperature –40 °C … +75 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 60 mm Thread length 28 mm Tightening torque, max. Typ. 14 Nm UL File No. E181493 Teach-in accuracy +/- 3% of Sr Resolution, typical (range) 10 μm (0 mm … 1 mm) 20 μm (1 mm … 3 mm) 50 μm (3 mm … 4 mm) Resolution, maximum (area) 20 μm (0 mm … 1 mm) 40 μm (1 mm … 3 mm) 100 μm (3 mm … 4 mm) Safety-related parameters MTTFD 688 years DCavg 0 % TM (mission time) 20 years Communication interface Communication interface IO-Link V1.1 Communication Interface detail COM2 (38,4 kBaud) Cycle time 5 ms Process data length 32 Bit Process data structure Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = switching signal QInt3 Bit 3 = switching signal QInt4 Bit 16 … 31 = distance value Factory setting Switching Point 1: reference value 1 Output: normally open Pin 2 configuration: input Reference values Note Reference value in Digits for switching point in mm stored in the sensor Reference value 1 4 mm Reference value 2 3 mm Reference value 3 2 mm Reference value 4 1 mm Reduction factors Stainless steel (V2A, 304) Approx. 0.7 Aluminum (Al) Approx. 0.4 Copper (Cu) Approx. 0.3 Brass (Br) Approx. 0.4 Installation note Remark Associated graphic see “Installation” A 8 mm B 18 mm C 8 mm D 12 mm E 8 mm F 32 mm Smart Task Smart Task name Base logics Logic function AND OR XOR Hysteresis Timer function On delay Off delay ON and OFF delay Impulse (one shot) Inverter Adjustable Switching frequency SIO Direct: 1000 Hz, SIO Logic: 1000 Hz, IOL: 1000 Hz Switching signal Switching signal QL1 Switching output Switching signal QL2 Switching output Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor – 872C-DX34-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-MM1NP7-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, PTFE Coated, WFI, 12 mm Barrel Diameter, DC, 2 mm Sensing Distance, Normally Open Sourcing, Micro Quick Disconnect – 871Z-DW2NP12-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M8 x 1 Diameter Ø 8 mm Sensing range Sn 0 mm … 4 mm Safe sensing range Sa 3.24 mm Number of switching points Up to 4 adjustable switching points or windows Switching modes Single point, Window mode, Two point mode, Visual adjustment indicator Switching frequency Qint.1 / Qint.2 on Pin2 1,000 Hz Installation type Non-flush Connection type Male connector M12, 4-pin Switching output PNP Output Q/C Switching output or IO-Link mode Output MFC Switching output or input Output function NC / NO Output characteristic Programmable Electrical wiring DC 4-wire Enclosure rating IP68 IP69K Special features Smart Task, Resistant against coolant lubricants, IO-Link Special applications Zones with coolants and lubricants, Difficult application conditions Special characteristic Resistant against coolant lubricants Pin 2 configuration External input, Teach-in, switching signal Items supplied Mounting nut, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Hysteresis Programmable Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g Ambient operating temperature –40 °C … +75 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 60 mm Thread length 28 mm Tightening torque, max. Typ. 14 Nm UL File No. E181493 Teach-in accuracy +/- 3% of Sr Resolution, typical (range) 10 μm (0 mm … 1 mm) 20 μm (1 mm … 3 mm) 50 μm (3 mm … 4 mm) Resolution, maximum (area) 20 μm (0 mm … 1 mm) 40 μm (1 mm … 3 mm) 100 μm (3 mm … 4 mm) Safety-related parameters MTTFD 688 years DCavg 0 % TM (mission time) 20 years Communication interface Communication interface IO-Link V1.1 Communication Interface detail COM2 (38,4 kBaud) Cycle time 5 ms Process data length 32 Bit Process data structure Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = switching signal QInt3 Bit 3 = switching signal QInt4 Bit 16 … 31 = distance value Factory setting Switching Point 1: reference value 1 Output: normally open Pin 2 configuration: input Reference values Note Reference value in Digits for switching point in mm stored in the sensor Reference value 1 4 mm Reference value 2 3 mm Reference value 3 2 mm Reference value 4 1 mm Reduction factors Stainless steel (V2A, 304) Approx. 0.7 Aluminum (Al) Approx. 0.4 Copper (Cu) Approx. 0.3 Brass (Br) Approx. 0.4 Installation note Remark Associated graphic see “Installation” A 8 mm B 18 mm C 8 mm D 12 mm E 8 mm F 32 mm Smart Task Smart Task name Base logics Logic function AND OR XOR Hysteresis Timer function On delay Off delay ON and OFF delay Impulse (one shot) Inverter Adjustable Switching frequency SIO Direct: 1000 Hz, SIO Logic: 1000 Hz, IOL: 1000 Hz Switching signal Switching signal QL1 Switching output Switching signal QL2 Switching output Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
